NVIDIA RTX 5090 vs AMD RX 9070 XT vs Intel Arc A980: Ultimate GPU Showdown

In the world of high-performance graphics, 2025 has ushered in a three-way battle between NVIDIA’s GeForce RTX 5090, AMD’s Radeon RX 9070 XT, and Intel’s upcoming Arc “Battlemage” A980. These GPUs span the spectrum from ultra-enthusiast ($2000-class behemoth) to mainstream champion ($600 range) and a hopeful new entrant aiming to disrupt the status quo. This report compares their technical specs, gaming and compute performance, power efficiency, features, pricing, and more – to see how each stacks up and what experts are saying about them.

Technical Specifications & Architecture

Architecture & Process:

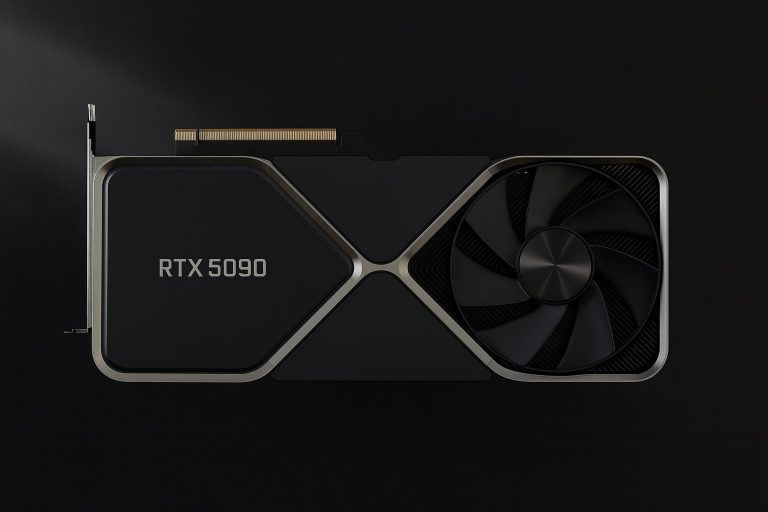

• NVIDIA RTX 5090 – Built on the “Blackwell” architecture (5nm class process), it boasts 21,760 CUDA cores (Shader units) across 170 Streaming Multiprocessors pcworld.com. This is a leap from the previous Ada Lovelace generation (RTX 4090 had 16,384 cores) pcworld.com. Blackwell introduces 4th-gen Tensor Cores and 3rd-gen RT Cores for ray tracing, along with support for new technologies like DLSS 4 (more on that later). Memory is also cutting-edge: 32 GB of GDDR7 on a 512-bit bus, delivering massive bandwidth pcworld.com. The RTX 5090’s GPU (codename GB202) is so large that NVIDIA doesn’t even use the full chip on the gaming card – 21,760 shaders enabled versus 24,576 maximum on the silicon (the rest likely reserved for a future Titan or enterprise card) pcworld.com. This monster card has a Total Graphics Power (TGP) of around 575–600 W pcworld.com pcgamer.com, which is unprecedented in a consumer GPU.
• AMD RX 9070 XT – Based on the RDNA 4 architecture (5nm process), launched in early 2025, it represents AMD’s “enthusiast-class” offering for this generation amd.com amd.com. The RX 9070 XT uses the new Navi 48 GPU die, featuring 64 Compute Units (CUs) which correspond to 4,096 stream processors (shaders). This is actually fewer cores than AMD’s last-gen flagship (the RDNA 3-based RX 7900 XTX had 96 CUs / 6,144 shaders), but RDNA 4 CUs are more powerful and efficient. AMD doubled down on AI and ray tracing blocks this gen: second-gen AI Accelerators and third-gen Ray Accelerators are integrated into each CU amd.com. The card comes with 16 GB of GDDR6 memory on a 256-bit bus, supplemented by 64 MB of Infinity Cache amd.com. Total Board Power for the 9070 XT is rated at 304 W amd.com. Notably, AMD did not launch a $1000+ “halo” GPU in 2025 – the 9070 XT (and its little sibling RX 9070) are the top RDNA4 gaming cards, targeting the upper-mainstream segment at launch amd.com amd.com.
• Intel Arc A980 (Battlemage) – Intel’s second-gen Arc GPUs use the codename “Battlemage” and the Arc B-series naming (though many enthusiasts refer to the expected flagship as A980 for continuity). The first Battlemage cards (Arc B580 and B570) launched in late 2024 as mid-range products (12GB $249 and 10GB $219 respectively) tomshardware.com tomshardware.com. The Arc A980/B770 will be the high-end Battlemage GPU slated for late 2025, aiming to elevate Intel into true gaming enthusiast territory overclock3d.net overclock3d.net. Precise specs remain under wraps overclock3d.net, but rumors suggest around 32 Xe-cores (Intel’s equivalent of CUs), which is 4,096 ALUs (shaders) – similar raw count to the RX 9070 XT – and 16 GB of GDDR6 on up to a 256-bit bus tomshardware.com tomshardware.com. If true, that would imply a power draw in the 250–300 W range and performance targeting the level of an NVIDIA RTX 4070 Ti or RTX 5070 overclock3d.net overclock3d.net. (Some wild rumors spoke of a 48 Xe-core monster with 384-bit bus and 24GB VRAM, but credible reports say Intel is sticking to 32 Xe-cores max for Battlemage tomshardware.com.) Like its rivals, Battlemage supports hardware ray tracing and AI acceleration (Intel’s XMX matrix engines), and is built on TSMC’s 5 nm process tomshardware.com.

Key Specs Comparison: The table below summarizes core specs of the three GPUs:

<small>Intel Arc A980/B770 specs are estimated based on leaks and reports (final specs TBD) overclock3d.net overclock3d.net. “Xe-cores” pack 128 ALUs each, so 32 Xe = 4096 ALUs. Intel has not announced pricing; it’s expected to aggressively undercut comparable NVIDIA/AMD cards.</small>

Gaming Performance Showdown (1080p, 1440p, 4K)

When it comes to gaming, the RTX 5090 is unequivocally the most powerful GPU ever released – but how much faster is it in practice, and can AMD or Intel come close for less money? Let’s break it down by resolution:

• 4K Gaming: The RTX 5090 thrives at 4K, often showcasing 30% (or more) higher frame rates than its predecessor, the RTX 4090 gamersnexus.net. In GPU-bound titles, the gains can even approach 35–40%. For example, in Black Myth: Wukong at 4K ultra, the 5090 hit 86 FPS average, which is 28% higher than the 4090’s 67 FPS gamersnexus.net. In Dragon’s Dogma 2, it led the 4090 by 35% (133 FPS vs 98 FPS) gamersnexus.net gamersnexus.net. In fact, the RTX 5090’s 1% low frame rates (the worst 1% of frames) in some games are still higher than the average FPS of any other card, which is a testament to its headroom gamersnexus.net gamersnexus.net. Against AMD’s offerings, the 5090 completely dominates – e.g. a 74% lead over the last-gen Radeon RX 7900 XTX in Wukong gamersnexus.net. Since AMD’s new RX 9070 XT is a bit slower than the 7900 XTX (more on that shortly), the gap to the 5090 at 4K remains enormous – roughly 2× the performance in many cases. The RX 9070 XT is positioned more toward high-quality 1440p and entry-4K gaming, so at 4K ultra settings it can’t catch NVIDIA’s flagships. Still, AMD’s card holds its own for the price: in Dragon’s Dogma 2 at 4K, the 9070 XT delivered 70 FPS, which is 95% of the performance of NVIDIA’s $750 RTX 5070 Ti (56 FPS) despite the AMD card costing only $600 gamersnexus.net. In that scenario the 9070 XT even edged out the older RTX 3090 Ti. However, the 5070 Ti and RTX 4080-class GPUs remain faster overall at 4K. Intel’s current Arc GPUs, meanwhile, are not high-end 4K contenders – the midrange Arc B580 struggles to hit ~60 FPS at 1080p or 1440p in many games, so 4K is largely beyond its scope. The forthcoming Arc A980/B770 might target 4K at medium settings or lighter games, but generally Intel is focusing on the sub-4K gaming segment for now.
• 1440p Gaming: At 1440p, the playing field tightens a bit. The RTX 5090’s advantage over the 4090 shrinks to the 20–25% range in many titles at 1440p gamersnexus.net gamersnexus.net (partly because as GPU power grows, CPU or other limits start to kick in). For instance, in Black Myth: Wukong at 1440p, the 5090 led by 23% over the 4090 (130 FPS vs 106) gamersnexus.net, and in Starfield it was about 12% ahead (147 vs 132 FPS) gamersnexus.net gamersnexus.net. For AMD, the RX 9070 XT was designed with 1440p gaming as a sweet spot, and it shows. In Dragon’s Dogma 2 at 1440p, the 9070 XT scored essentially neck-and-neck with NVIDIA’s RTX 5070 Ti, within a 3% margin gamersnexus.net – a difference no gamer would notice. In the same test it was only ~8% slower than AMD’s own last-gen flagship, the 7900 XTX gamersnexus.net, showing that RDNA4’s architectural gains allow a 64-CU card to nearly catch a 96-CU predecessor. In some titles, the 9070 XT even beats the 7900 XTX at 1440p thanks to its improved ray accelerators and clock speeds gamersnexus.net. Overall, a 9070 XT will comfortably handle 1440p at max settings in modern games, often delivering 100+ FPS, whereas NVIDIA’s RTX 5090 is overkill for 1440p (its extra power is not fully utilized at this resolution – e.g. a 5090 might be ~20% ahead of a 4090, but both are already well above 1440p/120Hz refresh rate limits in many games gamersnexus.net gamersnexus.net). Intel’s Arc cards can game at 1440p but with compromises. The Arc B580 (Intel’s $249 card) generally traded blows with a GeForce RTX 4060: in some games like Horizon Zero Dawn, the B580 was ~20% faster than RTX 4060 (even 56% better 1% lows, likely due to its larger 12GB VRAM) techspot.com techspot.com. But in other titles (especially those not yet well-optimized in Intel’s drivers), the Arc could be 15–20% slower than the RTX 4060 techspot.com techspot.com. In short, Intel’s current best struggles to consistently maintain 60+ FPS at 1440p in all games, but it shines in specific scenarios (modern games that need more than 8GB VRAM, where the 12GB Arc card avoids severe stutters the 8GB RTX 4060 suffers techspot.com techspot.com). The upcoming Arc A980 should improve 1440p performance significantly – if it truly matches an RTX 4070 Ti as rumored, it would be very playable at 1440p ultra and high refresh rates overclock3d.net.
• 1080p Gaming: At 1080p, we hit CPU limits in high-end systems, so differences narrow further. The RTX 5090 still shows improvement over the 4090, but it might be only ~15–20% faster on average at 1080p, since the GPU spends more time waiting on the CPU gamersnexus.net. In one example, Black Myth: Wukong at 1080p had the 5090 ~20% ahead of the 4090 (160 vs 133 FPS) gamersnexus.net. In many games, a 5090 and 4090 will feel the same at 1080p (both maxing out the game well above 144Hz). Meanwhile, AMD’s 9070 XT practically erases the gap with pricier cards at 1080p. In several benchmarks, the 9070 XT was shown to be functionally equal to the RTX 5070 Ti and even the 7900 XTX at 1080p – any small differences were within a few percent or margin of error gamersnexus.net gamersnexus.net. For instance, in one test the 9070 XT averaged 145 FPS vs 151 FPS on the RTX 5070 Ti (a trivial gap) and was only 8% behind the 7900 XTX gamersnexus.net. At this resolution, even lower-tier cards become the bottleneck: a $600 GPU or even Intel’s $250 Arc can hit high frame rates at 1080p in many games. The Arc B580 often does quite well at 1080p; across a broad 50-game analysis, it was roughly on par with the GeForce RTX 4060 overall, albeit with wide variance per title techspot.com techspot.com. Notably, in some VRAM-heavy games at 1080p (ultra settings), the Arc B580 significantly outperformed the 8GB RTX 4060 – for example, in The Last of Us Part I, the B580 was 29% faster in average FPS and a huge 110% better in 1% lows, thanks to having 12GB VRAM to avoid resource thrashing techspot.com techspot.com. But in very old or esports titles, or those with engine quirks, the Arc might lag behind the Nvidia/AMD equivalents due to driver overhead on DX11 and other API issues Intel is still ironing out techspot.com techspot.com.

Ray Tracing Performance: Ray-traced graphics are a major point of differentiation. NVIDIA has a clear lead in raw ray tracing horsepower – the RTX 5090 can enable path tracing or heavy ray-traced effects and still crush framerates that other cards can barely manage. For example, in Cyberpunk 2077: Phantom Liberty with maxed RT at 4K (using DLSS/FSR upscaling), the 5090 provides a substantially smoother experience than any AMD or Intel GPU. That said, AMD made huge strides in RDNA 4’s ray tracing abilities. The RX 9070 XT features redesigned RT units that double the ray-triangle intersection throughput per CU and add new capabilities (BVH⁸ structures, oriented bounding boxes, etc.) gamersnexus.net. The result: in many games, the 9070 XT is much closer to NVIDIA’s mid-high cards in ray tracing than the previous gen was. At 1440p with RT enabled, the 9070 XT was observed to be only ~8% slower than an RTX 5070 Ti on average – a remarkable showing for a Radeon GPU techspot.com techspot.com. In fact, it was about 26% faster than the RX 7900 XTX in 1440p ray tracing tests techspot.com, underscoring the gen-on-gen improvement. Tech reviewers noted that “with RDNA 4, AMD has made significant strides in ray tracing performance” techspot.com – enough that Radeons can now run modern RT games at decent frames, whereas last gen they lagged badly (the 7900 XTX often lost even to Intel’s Arc A770 in ray-traced games like Minecraft RTX or Fortnite Lumen, which was embarrassing for AMD gamersnexus.net). Of course, NVIDIA still leads: the RTX 5090 can often brute-force higher RT settings or framerates that the 9070 XT (and certainly Intel’s GPUs) cannot reach. At 4K with heavy ray tracing, the 9070 XT falls further behind – in one set of tests it averaged 25% lower FPS than the RTX 5070 Ti at 4K RT techspot.com (and the 5070 Ti itself is much slower than a 5090 in RT). In extreme ray-traced workloads (like path-traced Overdrive mode in Cyberpunk or fully ray-traced Minecraft), NVIDIA’s 50-series is in a class of its own – those are cases where even 20–30% extra cores (5090 vs 4090) make a big difference, and DLSS 4’s multi-frame generation can double effective fps (with some caveats – see Features section). Intel, for its part, introduced respectable ray tracing units in Arc GPUs (they surprised everyone by sometimes beating AMD’s RDNA2 cards in ray tests). The Arc A770 could run Metro Exodus Enhanced or Fortnite RT at playable framerates, which gave Intel a niche as “good budget RT card” in 2022. Battlemage is expected to strengthen that. However, Intel lacks proprietary tech like DLSS and has to rely on industry-standard upscalers (XeSS and DXVK integration) – it’s unlikely Intel’s top card will challenge a 5090 or even 5080 in ray tracing; at best it might rival a last-gen high-end (maybe RTX 3080-level RT performance).

Gaming Summary: For pure gaming dominance, the GeForce RTX 5090 is the ultimate winner – no question – often 30% faster than the next-fastest GPU on the planet gamersnexus.net, and in many games over 2× the performance of AMD’s best (which itself is a more mid-range part this cycle). It’s the card for those who demand the absolute highest settings, 4K (or 8K) resolutions, and high refresh rates without compromise. The Radeon RX 9070 XT, meanwhile, emerges as a fantastic value-per-frame champion. It delivers performance in the range of a ~$750 NVIDIA card for only $599, and even achieves feats like 40%+ higher frame rates than its predecessor (it beat the 7900 XTX by 40% in one test at 1440p amd.com amd.com) and closes the ray tracing gap significantly. It’s a GPU that can max out 1440p and do 4K gaming reasonably well, at less than one-third the cost of an RTX 5090. Finally, Intel’s Arc is still the underdog – in its current form, it’s competing in the entry-to-mid range (think 1080p high or 1440p medium gaming). The Arc A580/ B580 showed that Intel can deliver solid performance for the money, if drivers cooperate: in some modern titles it even outperformed an RTX 4060 by double-digit percentages thanks to its memory advantage techspot.com techspot.com. But consistency is the issue – older or unoptimized games can send Intel’s performance plummeting (e.g. Arc struggled badly in Starfield, performing “significantly slower than the RTX 4060” with lots of stutter) techspot.com techspot.com. We anticipate the Arc A980 (B770) will iron out more of these issues and push Intel up to true 1440p-high/4K-medium class performance. If Intel hits their targets, by end of 2025 we could see a third player offering ~RTX 4070 Ti level gaming at a competitive price overclock3d.net – which would be great for GPU buyers.

Productivity & Compute Performance (AI, Rendering, etc.)

Beyond gaming, many enthusiasts and professionals are interested in how these GPUs handle workstation, content creation, and AI workloads. Here’s how they compare in productivity tasks:

• NVIDIA RTX 5090: NVIDIA has cultivated a strong reputation in compute workloads, and the RTX 5090 doubles down on that. It features 4th-generation Tensor Cores and a beefed-up FP32/FP16 throughput that make it a beast for AI inference, rendering, and scientific computing. In AI benchmarks (like MLPerf and Geekbench AI), the RTX 5090 handily takes the crown. One review noted that in a suite of AI inference tests, the RTX 5090 was 22% – 35% faster than the RTX 4090, and “offers over 2× the performance of AMD’s current best” in those AI tasks hothardware.com hothardware.com. In fact, the 5090 “leaves [the 4090] in the dust” and AMD’s top Radeon “isn’t even in the same ballpark” on those AI benchmarks hothardware.com hothardware.com. This is due in part to NVIDIA’s superior software ecosystem (CUDA, cuDNN, TensorRT, etc.) and the Blackwell architecture’s focus on AI throughput (including support for the new FP8 data format and improvements in sparsity handling). The RTX 5090’s large 32GB memory is also a boon for professionals – it can handle massive 3D scenes or ML models that would overflow the 16GB of most other gaming cards. In rendering tasks, the 5090 again excels: in Blender GPU rendering, it scored ~30–44% higher than the 4090 depending on the scene hothardware.com. That puts it well above any AMD or Intel card (Blender loves NVIDIA’s Optix and CUDA acceleration – even a 4090 was roughly 2× faster than a 7900 XTX in many scenes). Another aspect is video encoding and multimedia: the RTX 50-series offers dual AV1 video encoders and decoders, making it very attractive for streamers and video editors. The 5090 can transcode 8K video or multiple 4K streams with ease, leveraging NVIDIA’s Broadcast and Studio software stack. Bottom line: If your workload involves heavy AI or 3D rendering (or any CUDA-accelerated apps like Adobe, Autodesk, etc.), the 5090 is an absolute powerhouse. It’s essentially a bridge between consumer and pro data-center GPUs, even using the same Blackwell GPU core as NVIDIA’s pro cards (just slightly cut down) pcgamer.com pcgamer.com.
• AMD RX 9070 XT: AMD’s focus with RDNA 4 was not only gaming but also adding more AI and content creation capabilities to Radeon. The 9070 XT comes with second-generation AI Accelerators (matrix cores) and improved compute libraries. According to AMD, RDNA 4’s AI units have 8× the INT8 throughput per CU compared to RDNA 3, thanks to additional math pipelines, support for new data formats like FP8, and optimization features like structured sparsity amd.com amd.com. This means Radeons are now more viable for things like AI inference, image generation, and other GPU compute tasks that rely on matrix operations. For instance, AMD demonstrated generative AI models (Stable Diffusion, etc.) running significantly faster on the 9070 series than on the previous gen. In content creation, third-party reviews show the 9070 XT performing well: in PugetBench tests for popular apps, it scored just behind an NVIDIA RTX 4080 in Lightroom and surpassed the 4070 in some DaVinci Resolve effects pugetsystems.com pugetsystems.com. Its 16GB VRAM is beneficial for creators (the same amount the RTX 4080 has, and more than the 4070 Ti/4070 which have 12GB). AMD has also enhanced the media engine: the Radiance Display Engine on RDNA 4 supports DisplayPort 2.1a and HDMI 2.1b outputs (up to 8K 144 Hz or 4K 480 Hz) amd.com, and the GPU has an Enhanced Media Engine capable of hardware AV1 encoding, 8K60 decode, and other modern codecs. In real-time rendering engines or OpenCL tasks, the 9070 XT tends to do well, although NVIDIA still often leads in proprietary or CUDA-based apps. For example, in the V-Ray renderer, NVIDIA cards have historically dominated thanks to CUDA path-tracing, but AMD’s OpenCL drivers have narrowed the gap. One caveat: professional software support. NVIDIA’s Quadro/Studio ecosystem is still more polished; AMD is improving, but some apps don’t yet fully leverage RDNA4’s AI cores. Still, the value is undeniable – a $599 Radeon that can approach or beat $800–$1000 NVIDIA cards in many creator tasks is a strong proposition tomshardware.com tomshardware.com. AMD is even pitching the 9070 series as being ready for some AI workloads: while not a competitor to a 24GB RTX 6000 ADA or such, an RX 9070 XT can indeed run popular machine learning frameworks via DirectML or ROCm. AMD’s press materials highlight that it can “effectively run generative AI applications” and accelerate creative apps with its AI cores amd.com amd.com. For most prosumer creators (video editing, photography, streaming, moderate 3D work), the 9070 XT offers more than enough performance and features – and at a far lower price than NVIDIA’s flagship.
• Intel Arc A980 / Battlemage: Intel’s Arc GPUs bring a couple of unique advantages in productivity for budget users. First, Intel’s media engine is excellent – the Arc series were the first GPUs to offer hardware AV1 encoding, and Battlemage continues that. This is great for streamers or video producers using AV1 for its superior quality. Arc supports an enhanced QuickSync engine, so tasks like video transcoding in HandBrake or Adobe Premiere can be accelerated efficiently. In AI tasks, Intel’s approach is via their XMX engines (matrix cores, analogous to NVIDIA’s Tensor cores). These are used for Intel’s XeSS AI upscaling in games, but can also be accessed via OpenVINO and oneAPI for AI inference. The Arc A770 could run some AI inference about as fast as an RTX 3070 in early tests, but Intel’s AI software stack isn’t as widely adopted. It’s noteworthy that Intel open-sourced their AI upscaler (XeSS), which can let developers use Arc’s AI units more flexibly. In professional rendering, Arc GPUs support DirectX 12 Ultimate and Vulkan, and Intel has been working on drivers for content creation apps. However, in many benchmarks (Blender, etc.), the first-gen Arc struggled due to immature drivers or lack of optimization – often coming in behind equivalently priced NVIDIA/AMD cards in those tasks. We expect Battlemage to improve that with both driver maturity and raw horsepower. Intel’s oneAPI rendering toolkit (which includes Embree, OSPRay, etc.) is optimized for Intel GPUs, which could give Arc an edge in certain rendering or ray tracing applications, especially in CPU+GPU heterogeneous setups. Another aspect: Intel’s Arc Pro GPUs (workstation versions) have been released with up to 16GB VRAM (Arc Pro B50, B60). While the Arc A980 will be a consumer card, its feature set (like SR-IOV support, large BAR, etc.) might overlap with pro use. In summary, Intel is the newcomer and still chasing the others in compute performance. If your workload relies on CUDA or specific pro apps, Intel GPUs may not be ideal yet. But if you’re a developer or hobbyist willing to tinker, Arc can be surprisingly capable for things like media encoding or AI upscaling on a budget. Plus, more competition in this space (especially if Intel prices the A980 aggressively) could push NVIDIA and AMD to lower the cost for creators to get decent GPU acceleration.

Compute Summary: NVIDIA’s 5090 is the clear winner for AI and professional workloads, leveraging its advanced tensor cores and software support to deliver performance that others can’t easily match (often >30% over the 4090 and multiples of AMD’s performance in AI tests) hothardware.com hothardware.com. AMD’s 9070 XT, while not aiming to beat the 5090 in raw compute, provides ample performance for most creators and significantly upgrades AMD’s capabilities in ray tracing and AI – it’s now a viable choice for many workstation tasks, with features like AV1 encode and FidelityFX/FSR tools for developers. Intel’s Battlemage, on the horizon, is more of a wildcard; its success in compute will depend on software support. The good news is all three vendors now offer AI-accelerated features (DLSS, FSR, XeSS for gaming; plus various AI dev tools) and support modern codecs and APIs, so even if you go with a value option like AMD or Intel, you’re not completely locked out of the AI/content creation arena – you may just have to deal with longer render times or a less streamlined software experience.

Power Efficiency and Thermals

All this performance comes at the cost of power and heat, and here the differences between the GPUs are stark:

• NVIDIA RTX 5090: With a rated TGP up to 600W, the RTX 5090 pushes the limits of what’s feasible in a desktop PC. Real-world gaming power usage sits around 520–580 W under load for the Founders Edition gamersnexus.net gamersnexus.net. This is roughly 30% higher power draw than the RTX 4090 (~450W) for ~30% performance gains, meaning power efficiency (performance per watt) hasn’t improved over the 4090. In fact, one analysis showed a game where 5090 got 31% more fps than 4090 but used 37% more power, resulting in slightly worse fps/W than last gen gamersnexus.net gamersnexus.net. NVIDIA has essentially traded efficiency to maximize absolute performance. It’s telling that NVIDIA heavily promotes DLSS 4 frame generation as an “efficiency” booster – because in pure raster performance/watt, Blackwell GPUs are about on par with Ada Lovelace GPUs gamersnexus.net gamersnexus.net. The RTX 5090 also continues to use the 12VHPWR (16-pin) power connector, which has raised some eyebrows. Drawing nearly 600W through a single connector is pushing the limit of the spec – GamersNexus expressed concern that NVIDIA stuck with 12VHPWR “while pushing so close to the limit of the cable” gamersnexus.net gamersnexus.net, especially after the well-publicized cable melting issues on 4090s (which NVIDIA claims to have mitigated with updated 12V-2×6 connectors). On the positive side, the thermal solution on the RTX 5090 Founders Edition is outstanding. Despite the huge power, the FE card is only 2 slots thick and manages to keep GPU temperatures in the 70s °C under load, with surprisingly low noise gamersnexus.net gamersnexus.net. Reviewers marveled that NVIDIA could cool a 600W card in a smaller form factor than the 3-slot 4090 – crediting a vapor chamber and redesigned fans. Still, case airflow is critical for a 5090; it will dump a lot of heat (500+ Watts is like having five high-end CPUs worth of heat in your PC). Idle power draw on the 5090 was measured around 46 W on desktop gamersnexus.net – interestingly, that’s lower than some midrange cards (Arc A580 idles higher) but higher than the 4090 which could idle in the 20-30W range. It seems Blackwell optimized multi-monitor idle power a bit, but there’s room to improve. Overall, the 5090 is the most power-hungry GPU ever, and while it’s reasonably efficient at 4K (relative to its insane performance), it draws a lot of electricity. Prospective buyers should ensure they have a robust PSU (1000W+ recommended) pcgamer.com pcgamer.com and good case cooling. NVIDIA’s partners have even released models with 3x 8-pin connectors as an alternative to using a single 12VHPWR via adapter, given the concerns.
• AMD RX 9070 XT: The 9070 XT’s 304W board power might seem mild next to the RTX 5090, but it’s still substantial – especially considering this card targets the upper-midrange segment. In terms of efficiency, RDNA 4 made solid gains. AMD claims a >30% performance-per-watt improvement over RDNA 3 in ideal conditions, and indeed one review’s tests showed the 9070 XT achieving 42% better FPS/W than the RX 7900 XT (its last-gen counterpart) in a given scenario gamersnexus.net. Against NVIDIA’s Ada/Ada-Next cards, though, AMD still trails a bit in efficiency. For example, in an F1 2024 benchmark at 1080p, the RX 9070 XT delivered 0.51 FPS/W while consuming ~311W, whereas NVIDIA’s RTX 5070 Ti managed 0.62 FPS/W at ~266W – meaning the NVIDIA card was ~22% more efficient in that test gamersnexus.net. Part of this is down to the physics of high-end silicon: NVIDIA’s Blackwell and AMD’s RDNA4 are both highly optimized, but NVIDIA’s lead in process (perhaps using a custom 4N node vs standard N5) and architecture focused on efficiency still gives them the edge. That said, 304W for performance around an RTX 4080 is actually quite competitive – the RTX 4080 (16GB) has a 320W TGP, for similar performance. So AMD caught up such that on pure raster gaming, they’re in the same ballpark of efficiency as NVIDIA’s 2nd-tier cards. Thermals on the 9070 XT will depend on the partner card, as all 9070-series are made by board partners (AIBs). Most models have large 2.5 or 3-slot coolers with dual or triple fans, similar to custom RX 7900 cards. Given the slightly lower power than those cards, the 9070 XT generally runs cool and quiet. Reviews noted no significant thermal throttling, and the card can often boost near its 3.0 GHz rated clocks consistently amd.com amd.com. One point in AMD’s favor: power draw tends to scale down more at lower usage – in light gaming or idle, the 9070 XT can drop to under 15W idle, and thanks to aggressive chiplet power gating in RDNA4, multi-monitor and video playback efficiency improved from the previous gen. Overall, the 9070 XT is reasonably power-hungry (you’ll want a quality PSU ~700W+ for a system with one), but it’s not absurd for the performance delivered – and it’s far more efficient than NVIDIA’s 5000-series flagships when considering performance per dollar, if not per watt.
• Intel Arc (Battlemage): Intel’s first-gen Arc Alchemist GPUs were notorious for high power draw relative to their performance. The flagship A770 had a 225W rating but often performed closer to a 200W RTX 3060 Ti (170W). With Battlemage, Intel appears to be improving in this area, but it’s still behind the curve of NVIDIA/AMD efficiency. The Arc B580 has a 185W TBP for roughly RTX 4060-class performance (the RTX 4060 is just 115W) tomshardware.com tomshardware.com. That’s a big delta, though part of it is that Intel cranked up the B580 to maximize performance – its 12GB VRAM and wider bus consume more power than NVIDIA’s lean 8GB/128-bit configuration. The upcoming Arc A980 (or B770) will likely be in the 225–300W range. If it indeed competes with an RTX 4070 Ti (~285W for 4070 Ti), Intel might end up somewhat worse efficiency or similar, depending on clocks. It’s worth noting that Intel GPUs have had some odd power behavior: early Arc drivers sometimes kept the card at higher power states when not needed, causing higher idle or multi-monitor power draw. NVIDIA and AMD have decades of driver refinement to idle their cards at 5-10W; Intel was hitting 30-50W idle on multi-monitor setups initially. There have been improvements through 2023 and 2024 drivers, but in one measurement, an Arc A750 and Arc B580 both drew around 50W at idle with certain configurations, whereas the RTX 5090 FE idled at 46W in the same test gamersnexus.net. So ironically, the power-hungriest GPU (5090) idled lower than Intel’s midrange card due to better power management. We expect Battlemage drivers to fix more of these issues. Thermally, Intel’s Arc Limited Edition coolers (for A770/A750) were decent dual-fan designs. For B-series, Intel launched only the B580 Limited Edition (a dual-slot, dual-fan card) which reviews said ran fine at ~70–75°C. Custom Arc cards from partners also exist. If Intel goes for a B770 with ~250W, they’ll likely need a beefier triple-fan cooler akin to what AMD/NVIDIA use in that segment. In summary, Intel is playing catch-up on efficiency – their strategy so far has been to compensate for weaker perf-per-watt by using a bit more wattage to hit target performance. This works in desktop where power is less constrained (a gamer might not mind a 250W card that performs like a competitor’s 200W card if the price is right). But it’s an area to watch, as high power without high performance to show for it could make it harder for Intel to gain favor, especially with enthusiast builders who value efficiency.

Efficiency Summary: NVIDIA leads in absolute performance but at the cost of extreme power draw – the RTX 5090 is not an efficiency champion, it’s a sheer brute-force approach (essentially trading watts for frames until hitting diminishing returns). Its efficiency is similar to the previous gen; the real win is that it achieved a new performance tier, albeit at ~600W. AMD’s RX 9070 XT shows big efficiency improvements generationally, and while it can’t match NVIDIA’s best perf-per-watt, it’s reasonably close to NVIDIA’s mid/high-end in efficiency and delivers much better performance-per-dollar. Intel’s Arc, meanwhile, currently lags on efficiency – but given its target market (budget GPUs), the slightly higher power may be acceptable for many if the price undercuts rivals. One might jokingly say: NVIDIA wins if you only care about performance and are willing to pay (and cool) whatever it takes; AMD wins if you care about your electric bill a bit more or want a balanced high-end card; and Intel wins if you’re a penny-pinching gamer who doesn’t mind a few extra watts for a cheaper card. The good news: all these GPUs are within typical PSU capacities (just don’t try to run a 600W 5090 on a cheap 600W power supply!). With a quality PSU and case, each can be managed thermally – and we’ve seen excellent engineering in coolers from all vendors this generation.

New Features and Innovations

Each new GPU generation isn’t just about raw speed – it also brings new features. Here are the standout innovations and feature comparisons among the RTX 5090, RX 9070 XT, and Intel Arc Battlemage:

• NVIDIA (RTX 5090 / Blackwell features): The headlining feature is DLSS 4, the latest iteration of NVIDIA’s AI-driven upscaling and frame generation technology pcgamer.com. DLSS 4 on Blackwell GPUs introduces Multi-Frame Generation (MFG), which allows the GPU to generate up to 3 additional frames for every 1 frame rendered traditionally pcgamer.com pcgamer.com. In other words, where DLSS 3 (on RTX 40 series) could insert 1 interpolated frame, DLSS 4 can insert as many as 3, massively boosting frame rates in supported games. NVIDIA claims this is a key reason the RTX 5090 can appear “2× faster” than a 4090 – but that is specifically in DLSS 4 MFG mode gamersnexus.net gamersnexus.net. (In fact, some reviewers called NVIDIA out for misleading marketing slides that showed 2× performance without clearly labeling that the 5090 was using 4X frame gen vs the 4090’s 2X frame gen in the comparison gamersnexus.net gamersnexus.net.) Nonetheless, DLSS 4 is a real boon for games that support it: it can significantly improve perceived smoothness, especially at 4K and with ray tracing, where even a 5090 might otherwise drop below 60 FPS. Other new NVIDIA features include refinements to RTX Video Super Resolution and AI-driven tools (NVIDIA Broadcast’s eye-contact, noise removal, etc., all leverage the tensor cores). The RTX 50 series also fully supports AV1 dual encode and improved NvEnc/NvDec performance, enabling 10-bit HDR AV1 and faster video editing workflows. On the connectivity side, RTX 5090 supports DisplayPort 2.1 (finally catching up to AMD here) and HDMI 2.1a, enabling ultra-high refresh at high resolutions, which the 4090 FE lacked. Architecture-wise, Blackwell GPUs have enhanced RT Cores (with better de-noising and interpolation for path tracing) and a new shader execution reordering implementation that improves efficiency in complex shaders. There’s also talk of NVIDIA using neural networks for driver shader compilation to optimize performance in certain games (an extension of their DLSS/AI work). All in all, NVIDIA’s feature set remains the most robust – things like Reflex (latency reduction), RTX IO (GPU-accelerated storage), and a mature VR/AR ecosystem give GeForce owners a lot of goodies to play with. The RTX 5090 basically takes this to the max with DLSS 4 and other Blackwell-exclusive perks.
• AMD (RX 9070 XT / RDNA 4 features): AMD’s RDNA 4 introduces a number of forward-looking features, many centered on AI and upscaling. The big addition is FidelityFX Super Resolution 4 (FSR 4) amd.com. Unlike earlier FSR versions which were shader-based or used temporal data, FSR 4 is AMD’s first machine-learning powered upscaling. AMD trained FSR 4 on high-quality images using their Instinct AI accelerators, and RDNA 4’s hardware FP8/INT8 support allows the RX 9000-series to run the FSR 4 upscaler efficiently amd.com amd.com. The result is higher quality upscaling comparable to DLSS, and it will be supported in over 30 games at launch (with more to come) amd.com. Alongside FSR 4, AMD launched HYPR-RX, a one-click suite of performance boosters in the Adrenalin driver amd.com. HYPR-RX can automatically enable a combination of AMD Radeon Super Resolution (driver upscaling), Fluid Motion Frames (AMD’s frame generation tech, now at version 2.1), Anti-Lag+ (to reduce input lag, AMD’s answer to Reflex), and Radeon Boost (dynamic resolution scaling). Essentially, it’s AMD’s integrated “easy button” to boost FPS and responsiveness, and it’s fully supported on the RX 9070 series. The third-gen Ray Accelerators in RDNA 4 bring features like Bounding Volume Hierarchy (BVH) Level 8 and support for micro-meshes (similar concept to NVIDIA’s displaced micro-meshes) which help improve ray tracing efficiency and image quality gamersnexus.net. AMD cites 2× ray throughput per CU versus last gen amd.com – and practical tests showed big gains, as discussed earlier. The RX 9000 cards also sport the new Radiance Display Engine with DisplayPort 2.1a (capable of 8K 144Hz or even 900Hz at lower resolutions!) and support for 12-bit color and HDR improvements amd.com. AMD’s media engine was upgraded, so encoding in H.264, HEVC, and AV1 is faster – plus AV1 encode is now supported at up to 8K60. Another innovation: AMD is dipping into AI-enhanced driver software. With the 9070 XT launch, AMD touted an “AI-powered” Adrenalin software that includes things like AMD Noise Suppression (AI noise filtering for your mic, akin to NVIDIA Broadcast) and even an “AMD Chat” AI assistant integrated into the software for help and queries amd.com. These are perhaps lesser-known features, but they illustrate how AMD is leveraging AI not just for rendering but for the user experience too. Importantly, all these features come without proprietary hardware lock-in – e.g., FSR 4 will still support a wide range of GPUs (including NVIDIA’s, potentially), which is AMD’s open philosophy. Summing up, RDNA 4 gives Radeon users a much more feature-rich toolkit than prior generations: finally a true DLSS competitor in FSR 4, functional frame-gen via Fluid Motion Frames, greatly improved ray tracing, and modern I/O and media capabilities that match or exceed the competition.
• Intel (Arc Battlemage features): Intel’s approach is to support industry standards while also pushing some unique innovations. XeSS (Xe Super Sampling) is Intel’s AI-based upscaler, which launched with Alchemist. It works on Arc GPUs using XMX hardware, but also has a fallback that can run on DP4a (so it can work on NVIDIA/AMD cards to some extent). While not as ubiquitous as DLSS/FSR yet, XeSS has been integrated into a decent number of games, and Intel will continue this with Battlemage – likely XeSS 2.0 with quality and performance improvements. One interesting rumor is Intel might enable a frame generation technique via drivers (there were hints of a technology akin to AMD’s Fluid Motion Frames in Intel’s driver code). If that materializes, Arc owners could get frame interpolation in any game, which would be a big value add for Intel (this is speculative but worth noting). On the ray tracing front, Battlemage GPUs support DXR and Vulkan RT like before, and possibly with upgraded RTU IP (the rumor of up to 48 cores had a mention of 48 RT units, which suggests they scale with Xe cores). Intel has been a supporter of Microsoft’s DirectStorage and even demonstrated GPU decompression on Arc. We can expect Arc to support those features out of the box (DirectStorage GPU decompression might become important in late 2025/2026 games). OneAPI is a key Intel strategy: Arc GPUs can leverage oneAPI’s Level Zero interface for compute, meaning developers can write code that runs on CPU, GPU, or even integrated graphics in a unified way. This could open doors for some creative use of Arc GPUs in heterogeneous computing tasks (for example, using an Arc GPU as a dedicated AI inference accelerator alongside a different main GPU). In terms of media, as mentioned, Intel leads with AV1 encode and decode – Battlemage will continue this, possibly adding dual-stream AV1 encoding and hardware support for the latest codecs like HEVC 12b HDR. Intel’s drivers now have a feature called Smooth Sync (to reduce tearing without full V-Sync, sort of a lightweight adaptive sync) which was introduced with Arc. Additionally, Intel has an open-source driver initiative for Arc on Linux, which is great for the hobbyists and professionals who use Linux – they’ve been steadily improving Arc’s performance in Linux and professional apps through open drivers. One more Battlemage feature: rumored support for TensorFloat32 and BF16 data formats in XMX, to broaden AI training support (Alchemist’s XMX was mostly INT8/INT4 focused). If true, this could make Arc GPUs more useful in AI development (not just inference). All considered, Intel is trying to catch up by supporting everything the others do (ray tracing, upscaling, etc.) while using openness as a selling point (lots of their tech is open or standards-based). The success of these features will depend on industry adoption – e.g. if XeSS and oneAPI get broad uptake, Intel could carve a niche. For now, the features are there, but NVIDIA and AMD’s ecosystems are more mature. Still, having a third player pushing features is a win for consumers: it drives all three to keep innovating.

Pricing, Availability, and Value for Money

Perhaps the most critical comparison for many readers: how much do these GPUs cost, and what’s the value proposition? The pricing spans from lofty $2000 territory down to mainstream $500-level, reflecting their target markets.

• NVIDIA RTX 5090 Pricing & Availability: The GeForce RTX 5090 launched on January 30, 2025 with an MSRP of $1,999 for the Founders Edition pcgamer.com pcgamer.com. Notably, NVIDIA did push the price envelope up compared to the previous 4090 ($1,599 MSRP), but it avoided the feared “over $2000” price tag many expected pcgamer.com pcgamer.com. At $1999, the 5090 is still extremely expensive – truly an enthusiast luxury. In fact, after launch, third-party cards (AIB models) often sold for well above MSRP; premium factory-overclocked versions hit $2,500+ in the market pcgamer.com. Early availability of the RTX 5090 was tight. It was essentially a paper launch at first – only small quantities were available in the first weeks. GamersNexus dryly noted NVIDIA had “a busy 3 months destroying the hype it built for the 50 series” with missteps including a paper launch and prices not being real, plus initial issues like adapter cables melting and some specs (like ROP counts) being misreported gamersnexus.net. By spring 2025, supply improved somewhat, but demand for the 5090 was also limited by the price. Interestingly, by mid-2025 there were reports (in some regions) of RTX 5090 cards dipping below MSRP as supply caught up pcgamer.com pcgamer.com. Overall though, expect to pay around $2k for a 5090 for the foreseeable future. From a value perspective, purely in $/FPS, the RTX 5090 is very poor value – roughly half the performance-per-dollar of a card like the 9070 XT. It exists in a class of its own; NVIDIA has essentially monopolized the ultra-high-end, and they price accordingly pcworld.com. For those who need the best or use the card for professional work that justifies the cost, it’s worth it. But for a gamer on a budget, the 5090 is an extreme splurge. One must also consider platform cost: a 5090 might entice you into needing a bigger PSU, better cooling, maybe a high-refresh 4K monitor to fully enjoy it – the ecosystem cost is high. Availability as of late 2025 is stable; it’s not hard to find a 5090 in stock (the way it was hard to find, say, a 3090 during the mining boom). But you will find your wallet considerably lighter after purchasing one.
• AMD RX 9070 XT Pricing & Availability: AMD launched the Radeon RX 9070 XT on March 6, 2025, with a SEP (Suggested Retail) of $599 USD amd.com amd.com. Its sibling, the non-XT RX 9070, came in at $549. This aggressive pricing undercuts NVIDIA’s closest performance neighbor (the GeForce RTX 5070 Ti) by a wide margin – the 5070 Ti’s MSRP is $749, though in reality it was often selling near $900 due to scarcity techspot.com. In essence, AMD positioned the 9070 XT as a price-to-performance champion, a strategy that CEO Dr. Lisa Su emphasized: she described the 9000-series pricing as “a tremendous value proposition to all our fellow gamers”, explicitly aiming to bait NVIDIA into a price war pcgamer.com pcgamer.com. Initial availability of the 9070 XT was actually quite decent – multiple sources indicated AMD ensured excellent supply at launch techspot.com techspot.com. Cards were available at or near MSRP in many regions on day one. Despite that, demand was extremely high. By all accounts, the 9070 series hit a sweet spot, and units were flying off shelves. Dr. Su mentioned that demand had “outpaced supply” for the RX 9000-series, meaning even with good supply, they were selling out pcgamer.com. Many gamers who sat out the $1000+ GPU market saw $599 as a refreshingly attainable price for high-end performance, so there was a bit of a gold rush feeling during launch week (some retailers temporarily ran out of stock or only had pricier factory OC models left). In the months following, the situation stabilized – AMD even was prepared to offer rebates if needed to keep the effective price at $599 amidst fluctuating street prices techspot.com techspot.com. In mid-2025, you could reliably find custom RX 9070 XT cards in the ~$600–650 range, depending on cooler and OC features. Value-wise, the Radeon 9070 XT is arguably the best value GPU in its class. Analysis by TechSpot showed that at MSRP, the 9070 XT offers about 15% better performance per dollar than a hypothetical 5070 Ti at $750 techspot.com techspot.com. But since the 5070 Ti was actually often pricier or unavailable, the real-world value advantage was more like 29–30% in $/frame for the Radeon techspot.com techspot.com. Essentially, you’re getting near-RTX4080 levels of performance for well under half of the RTX 5090’s price. That’s enormous value. One TechSpot remark was that if NVIDIA’s 50-series midrange remained overpriced, the 9070 XT at $600 is a “no-brainer” techspot.com techspot.com. Even if NVIDIA were to drop the 5070 Ti to $750, the 9070 XT is still 20% cheaper and not far off in performance (especially raster performance), which many gamers would take as a win techspot.com techspot.com. As 2025 went on, AMD also launched lower models (RX 9060 XT at $299, etc.) targeting mainstream, but the 9070 XT remained the top “enthusiast value” pick. In fact, PC Gamer’s summer 2025 “best GPUs” list named the Radeon RX 9070 (non-XT) as the “Best overall” graphics card for gamers – citing its blend of strong performance and reasonable pricing pcgamer.com pcgamer.com. (They gave “Best high-end” to the RTX 5090 and “Best value” to the RX 9060 XT, interestingly, but the 9070 won overall best balance pcgamer.com.) This sums it up: AMD’s pricing strategy with RDNA 4 was to deliver high-end gaming to a broader audience, and it largely succeeded. The only caveat is that if you must have top-tier ray tracing or you play specific CUDA-dependent games, you might still lean NVIDIA despite the cost. But for most, the 9070 XT is a tough deal to beat in 2025.
• Intel Arc Pricing & Positioning: Intel’s Arc B580 launched at $249, and the cut-down B570 at $219 tomshardware.com tomshardware.com, making them very budget-friendly. Intel clearly aimed to offer more VRAM and features at a given price than competitors – e.g., the B580’s 12GB memory at $249 contrasts nicely with NVIDIA’s 8GB on the RTX 4060 at $299. This did attract budget gamers and those who wanted a card for 1080p with enough VRAM for future titles. The Arc A770 from the previous gen had been $329 (16GB Limited Edition), which was also quite aggressive. For the Arc A980 / B770, Intel hasn’t announced pricing yet (since the card isn’t out as of this writing). However, based on whispers and Intel’s pricing philosophy, one can speculate: if it competes with say a GeForce RTX 4070 (which is $599 MSRP) or 4070 Ti ($799 MSRP), Intel will likely price it substantially lower to entice buyers – perhaps in the $400–500 range. That could make it a huge spoiler in the upper midrange market. There’s precedent: when AMD had a similarly positioned high-end (RX 5700 XT in 2019), they priced it at $399 undercutting NVIDIA’s RTX 2070. Intel might attempt a similar undercut. Availability for Intel’s current Arc cards has been spotty. The Arc A770/A750 had a limited launch (mostly through Intel’s own site and a few partners). The Arc B580, when it launched in Dec 2024, sold out quickly and was hard to find for a few weeks tomshardware.com tomshardware.com. This indicates that either supply was modest or demand was higher than expected (likely a bit of both – many were curious to try the new B580 at that low price). Intel isn’t a stranger to supply chain, so by the time A980 comes, they might have more stock ready if they anticipate demand. Still, Intel is new to the add-in board market, so they don’t have the vast AIB partner network and distribution that NVIDIA/AMD enjoy. That means Arc cards might be available mostly online or in select regions. For value, Intel is playing the long game: they want to be seen as the value alternative. If the A980 indeed offers, say, 80-90% of a 5070 Ti’s performance for 50-60% of the price, it will force the incumbents to adjust or lose the budget-conscious segment. One external factor is drivers – some buyers might be willing to pay a bit more for NVIDIA/AMD because they trust the drivers more. Intel has been rapidly improving on that front (the narrative of “fine wine” drivers has started to apply to Arc – e.g., Arc A770 got significantly better performance via later driver updates). To sweeten the deal, Intel has bundled games and software with Arc cards and may continue doing so (a common tactic to add value). All things considered, Intel’s pricing has been aggressive and consumer-friendly, mainly out of necessity as the newcomer. We expect that to continue. For a gamer on a strict sub-$300 budget, Arc’s offerings provide an interesting alternative to an RTX 3050/4060 or RX 7600/7700. For midrange (~$500) buyers, the Arc A980 could become a price/performance disruptor if Intel executes well.

Value for Money Analysis: In pure numbers, AMD currently offers the best value at the performance high end – the RX 9070 XT delivers a huge percentage of top-tier performance at roughly one-third the cost of the RTX 5090. As one review calculated, at real street prices the 9070 XT was about 30% better value (fps per $) than its closest NVIDIA rival techspot.com techspot.com. NVIDIA’s 5090, conversely, is the luxury spend – its value proposition hinges on “no one else can do this.” If you need that last 30% performance no matter the cost, you pay a steep premium (diminishing returns are clearly at play – the 5090 gives ~30% more performance for ~125% more cost vs 4090 MSRP). Intel’s value is a bit more nuanced: at the low end, they’ve forced 12GB VRAM into $250 GPUs, which is great for longevity, and they often match a card that costs $50 more. But buyer beware that you might need to put in extra effort (e.g., tweaking some game settings or waiting on driver fixes) to get the most out of Arc, which is a hidden cost in time/effort. Enthusiast communities have embraced the idea that if you’re tech-savvy and don’t mind tinkering, the Arc cards give a lot of bang for buck. If you want a no-fuss experience, NVIDIA/AMD still have an edge. It’s also worth noting the resale value and longevity: NVIDIA cards historically hold value well (due to brand and also mining demand in the past). AMD cards, being initially cheaper, give more immediate value but may not resell for much (though with consoles using RDNA architecture now, there’s more demand for used Radeons too). Intel Arc is an unknown for resale – early A770’s on secondhand markets didn’t hold value great, but that could change if Arc gains traction.

Availability-wise, 2025 is a much healthier market than, say, 2021’s shortages. Each vendor had launch supply issues to some degree (NVIDIA had low initial 5090 stock, AMD’s 9070 sold out at times, Intel’s Arc B580 was hard to find early on), but by later in the year, GPUs are generally in stock. AMD even publicly said demand was outpacing supply, indicating strong interest in their cards pcgamer.com – a good sign for competition. In summary: If you want the “ultimate” GPU no matter the cost, the RTX 5090 is your card – but you’ll pay an eye-watering price for that luxury. If you want the best value for high-end gaming, the Radeon RX 9070 XT (or RX 9070) is an outstanding choice that brings high performance to a mid-tier price, at the cost of some ray tracing performance and higher power draw relative to NVIDIA. And if you’re extremely budget-conscious or like to support the underdog, keep an eye on Intel Arc – their current cards offer great specs for the money and the upcoming Battlemage flagship might shake up the midrange pricing further, which ultimately benefits all GPU buyers.

Public Reception and Reviews

The reception from both the public and expert reviewers has been a mix of admiration and criticism for these GPUs, each for different reasons. Below we highlight some key opinions and commentary:

• NVIDIA RTX 5090 Reception: There’s a sense that the RTX 5090 is an engineering marvel – it handily claims the performance crown, and many reviewers lauded it as “the king of PC gaming” in 2025. Gamers who got one revel in extraordinarily smooth gameplay at max settings. However, there’s also criticism in the community about NVIDIA’s approach. For one, the power consumption and size draw jokes (memes about needing a fire extinguisher for a 600W GPU, etc.). More pointedly, NVIDIA’s marketing drew some ire. Steve Burke of GamersNexus delivered a scathing remark on the RTX 5090 launch presentation, calling it out as “complete bulls marketing” gamersnexus.net for showing misleading performance graphs. Specifically, NVIDIA showed a bar chart suggesting 2× performance vs 4090 without clearly explaining they used DLSS 4 frame generation tricks to get that figure gamersnexus.net gamersnexus.net. This left a bad taste among tech enthusiasts who value honest numbers. Additionally, Jensen Huang (NVIDIA’s CEO) had made a comment that an upcoming RTX 5070 would equal a 4090 in performance – a claim that turned out untrue – and this further fueled skepticism gamersnexus.net. GamersNexus compiled a list of early RTX 50-series issues: “12VHPWR [adapters] burning, a paper launch, prices not being real, missing ROPs, and [NVIDIA] lying on stage”, quipping that we’d be “here all day” listing them gamersnexus.net. Despite these criticisms, once the dust settled and actual performance was tested, most reviewers agreed the 5090 is an immensely powerful card albeit at a ridiculous price. Thermals and acoustics on the Founders Edition got positive mentions (which is a nice change – previous flagships often got dinged for being hot/noisy, but not so with the 5090 FE) gamersnexus.net. On forums and Reddit, the general sentiment is: “Great performance, but can you justify it?” A common theme is that the 5090 makes sense only for certain niches – e.g. 4K high-refresh gamers, VR sim racers, or creators who also game. A lot of gamers are actually opting to wait for the RTX 5080 or 5070 Ti, which might give “close enough” performance for much less money. In summary, the 5090 is respected (even twice as many RTX 50-series cards have sold compared to 40-series by mid-2025, according to NVIDIA pcgamer.com pcgamer.com, showing strong uptake among those who can afford them), but it’s also seen as a poster child of excess – the phrase “enthusiast tax” comes up often in discussing its price. Reviewers like Dave James at PC Gamer noted some games at max settings still challenged the 5090 (citing Oblivion Remastered in UE5 dropping under 60 fps without frame gen – a surprise to see a new card struggle, highlighting that no GPU is truly “overkill” for everything) pcgamer.com pcgamer.com. That said, the card overall enjoys a positive reception for what it delivers – any negativity is largely aimed at NVIDIA’s pricing and marketing, not the product’s capabilities.
• AMD RX 9070 XT Reception: The 9070 XT was met with enthusiasm from gamers and reviewers who were happy to see AMD doubling down on value. Many called it a return to form for AMD: focusing on the mainstream high-end and offering a great bang-for-buck alternative to NVIDIA. TechSpot’s review concluded the “Radeon RX 9070 XT is a strong offering that… will sell extremely well at $600” techspot.com. They did caution whether that price would hold (if cards sell out, retailers might mark up), but as we discussed AMD managed to keep it in check. The improvement in ray tracing did not go unnoticed – Hardware Unboxed highlighted that “with RDNA 4, AMD has significantly closed the ray tracing gap”, showing benchmarks where the 9070 XT was sometimes within 5-10% of similarly priced NVIDIA cards in RT performance, which was unheard of before. Gamers were impressed that AMD even beat their own previous flagship in many metrics; the joke “9070 XT has that AMD FineWine built-in from day 1” circulated after tests showed driver updates giving it a further ~9% boost post-launch techradar.com. On the flip side, some people were disappointed that AMD did not release a true 7900 XTX successor for the extreme high end. Enthusiasts who wanted an “RX 9990” or something to directly challenge the RTX 5090 felt a bit let down. AMD’s response is essentially: “just wait, we’ll be back in the ultra-enthusiast game next time.” In fact, a July 2025 leak (via Moore’s Law Is Dead) suggested AMD is developing a monstrous RDNA 5 GPU with 154 CUs and 36GB GDDR7 to go toe-to-toe with NVIDIA’s next flagship in a couple of years pcgamer.com pcgamer.com. This rumor, reported by PC Gamer, indicates AMD consciously opted out of the high-end for RDNA 4 (likely due to cost and timing) and will re-enter that fight with RDNA 5 (also called UDNA, a unified gaming+AI architecture) in late 2026 or 2027 pcgamer.com pcgamer.com. In the meantime, public reception of the 9070 XT is that it’s perhaps the best GPU for most gamers in 2025. It even snagged awards – as noted, PC Gamer named the RX 9070 (non-XT) the “Best Overall GPU of 2025” in their guide pcgamer.com, and many YouTube reviewers gave it high praise for value. One interesting anecdote: Tech YouTuber Daniel Owen revisited the 9070 XT after some months and declared “AMD fine wine is real – the 9070 XT is now faster than at launch”, referring to driver maturity giving extra performance reddit.com reddit.com. He showed it beating an RTX 5080 in a game where at launch it had been slightly behind. Community response to AMD’s software features (FSR 4, HYPR-RX) has also been positive, although FSR 4 adoption is still growing. In short, the 9070 XT and its RDNA 4 siblings have a good public image: great value, much improved features, minor niggles here and there but nothing major. AMD has built goodwill by not price-gouging and by delivering on promises (40% better than last gen in that segment amd.com amd.com, which mostly held true). The main critique from some quarters might be: “It’s awesome, but I wish AMD had something for the $1000+ range too” – enthusiasm that AMD surely notes for next time.
• Intel Arc A980 / Arc Series Reception: The journey of Intel Arc has been a rollercoaster. The initial launch of Arc A770/A750 in 2022 was met with mixed reviews – hardware was promising, but drivers were immature leading to many issues (especially in older games). Over 2023 and 2024, Intel put serious effort into improving, and by the time Arc B580 came in late 2024, opinions had shifted more positive. Gamers recognized that Intel was in it for the long haul and had fixed many earlier problems. The Arc B580’s reception was actually quite upbeat: many reviews framed it as “Intel’s budget GPU is actually good now”. For instance, TechRadar in early 2025 commented that Arc B580 was a compelling cheap GPU, offering 12GB VRAM and solid 1080p performance for less money – though with the caveat “drivers have improved, but Intel still needs to do a lot of work” youtube.com. Enthusiast communities on r/IntelArc are passionate; they cross-compare benchmarks and celebrate each driver that boosts performance. Cross-vendor fans did notice that in some ray tracing tests last gen, Arc GPUs beat AMD – a point that gave Intel some bragging rights (and perhaps nudged AMD to double up RT performance in RDNA4). As for the Arc A980, since it’s not out yet, public reception is mostly speculative excitement. News that “Intel still plans a high-end Battlemage in Q4 2025 and won’t give up anytime soon” made the rounds wccftech.com wccftech.com, reassuring those who worried Intel might exit the GPU business. Enthusiasts are eager to see a third player in the mid-high segment because that competition could mean better prices and innovation. If Intel can deliver an Arc A980 that’s legitimately competitive with, say, an RTX 4070 or 4070 Ti, it will be a huge milestone – the first time in decades we have three companies in the high-end GPU space. Some experts like Jarred Walton at Tom’s Hardware have tempered expectations, saying based on current info the top Battlemage will likely be more of a “4070 Super level” card, not a 4090-killer, as the largest Battlemage chip is expected to be 32 Xe cores (not the fanciful 48 rumor) tomshardware.com tomshardware.com. And indeed Overclock3D reported insiders expect the Arc B770 to target RTX 5070/4070 Ti performance overclock3d.net overclock3d.net. So the public is not expecting Intel to beat a 5090 – but they are rooting for Intel to at least make a dent in the mid/high-end. The sentiment towards Intel’s efforts is generally positive in the tech community now (“the more competition the better” mindset), with a sprinkle of skepticism from those who had bad first experiences. If Battlemage launches smoothly with solid drivers, it will mark a turning point. If it’s delayed or comes out buggy, Intel will face renewed doubts. One very positive sign: Intel’s Arc has started appearing in “Best GPU” lists for budget categories. For example, PC Gamer’s list mentioned earlier actually lists the Intel Arc B570 as the “Best budget” graphics card of 2025 pcgamer.com pcgamer.com. That’s a big deal – a major publication acknowledging Intel as a top option in any category. It indicates that Arc is becoming mainstream enough to recommend for budget builds. To sum up, the public/reviewer reception of Arc is cautiously optimistic, trending upward. Intel has won some hearts by being the scrappy challenger offering good value (and by engaging openly with the community about driver improvements). Now a lot is riding on the Arc A980/B770 – if it wows, Intel’s reputation will soar; if it disappoints, people may say “Arc isn’t ready for prime time.” But given intel’s investments and the fact that they confirmed the next-next gen (“Celestial”) is also in the works, it seems Intel is committed to making Arc a success tomshardware.com tomshardware.com.

The Road Ahead: Upcoming GPUs from NVIDIA, AMD, and Intel

Looking beyond the RTX 5090, RX 9070 XT, and Arc A980, what’s next on the horizon? Each company has its roadmap:

• NVIDIA: The RTX 50-series (Blackwell) still has more products to roll out – we’ve seen 5090/5080/5070Ti/5070 and lower-end cards are expected (RTX 5060, 5050, etc. in late 2025). There are also persistent rumors of 50-series “Super” refreshes for 2026. In fact, one of the best leakers (kopite7kimi) already dropped specs for an alleged RTX 5080 Super that would bump the 5080 from 16GB to 24GB of VRAM pcgamer.com pcgamer.com. NVIDIA tends to do a mid-cycle refresh if competition demands it. Given AMD’s strong push in the $500–$600 range, NVIDIA might respond with price cuts or Super variants that add more VRAM or slightly more cores (we saw hints of a 16GB RTX 5070 Super too). Long term, NVIDIA’s next architecture after Blackwell is not officially named yet. Some call it “Ada Lovelace Next” or speculate it might be “Hopper” for gaming (though Hopper was used for data center GPUs). For discussion, let’s call it RTX 60-series (since it would presumably be 6000-series cards). According to typical cycles, we’d expect those around late 2026 or early 2027. PC Gamer mused that NVIDIA’s next flagship (the “RTX 6090”) will likely be what AMD targets with their RDNA5 monster pcgamer.com pcgamer.com. So NVIDIA probably has plans for further massive GPUs (perhaps on TSMC 3nm or even 2nm by then) with possibly even more radical tech (some speculate NVIDIA could integrate AI inferencing more deeply, or move to chiplet designs if monoliths become impractical). In the near term, NVIDIA is also expanding its AI and cloud gaming GPUs; interestingly, high-end GeForces often double as AI cards for enthusiasts (there was a story of researchers using RTX 5090s and even an NVIDIA RTX Pro 6000 – a Blackwell pro card with 96GB VRAM – for AI, with someone snagging one for “only” twice the 5090’s MSRP to run local models pcgamer.com pcgamer.com). This blur between pro and consumer will likely continue. On the extreme end, there’s whispers of a possible RTX 5090 Ti or RTX Titan if AMD had posed more competition, but as PCWorld noted, unless AMD had a surprise, NVIDIA might not bother with a 5090 Ti which would be an even hotter, pricier card pcworld.com. So far, no signs of a 5090 Ti – NVIDIA seems content with the performance lead they have. In summary, expect NVIDIA to refresh midrange 50-series, and prepare for 60-series in a couple of years, where they’ll undoubtedly aim to retain the crown (likely at even higher power unless efficiency breakthroughs are made).
• AMD: For AMD, the big thing is RDNA 5, which AMD has hinted will actually be part of a unified architecture (UDNA) combining gaming and AI capabilities pcgamer.com pcgamer.com. The rumor mill (via MLID and reported by PC Gamer) suggests AMD is prepping two main chips: a gargantuan one (codename likely “Navi 5x” or “AT0” internally) with 154 CUs, 384-bit bus, and 36GB GDDR7 pcgamer.com pcgamer.com, and a smaller one (“AT2”) with 64 CUs (like the 9070 XT count) but with newer tech that performs around an RTX 5080 level at much lower cost pcgamer.com pcgamer.com. The exciting part is that AMD might price that second chip at $550 for RTX 5080 performance pcgamer.com pcgamer.com – essentially doubling down on the value approach (sounds like continuing the 9070 XT ethos). The huge chip would be their re-entry into the ultra-enthusiast ring, potentially going up against NVIDIA’s next flagship (6090). However, all this is a bit distant: the report suggests these will not launch until late 2026 or early 2027 pcgamer.com pcgamer.com. That aligns with a roughly 2-year cadence after RDNA 4 (which came in early 2025). It also means AMD is sitting out of the $1000+ range until then. The wait might be worth it – if AMD executes UDNA well, they could come out swinging with a card that finally dethrones NVIDIA’s xx90. Historically, AMD has done this “skip a generation then come back strong”: they skipped high-end in 2018 (no new Vega high-end), then RX 6900 XT in 2020 competed, then 7900 XTX in 2022 competed, skipped again in 2024/25, and plan to compete in 2026/27 pcgamer.com pcgamer.com. So it’s a pattern. In the meantime, RDNA 4 isn’t fully done – AMD might release additional RX 9000-series SKUs (perhaps a 9090 for OEMs or a 9050 for low end). They already released an RX 9060 XT ($299) and RX 9060 ($279) in mid-2025 to address midrange, aggressively pricing them to undercut NVIDIA’s RTX 4060 Ti and 4060. If NVIDIA comes out with, say, an RTX 5080 Ti or 5070 Super, AMD could respond with price cuts or maybe an RX 9080 XT? (that name hasn’t been mentioned in leaks, but theoretically AMD could scale Navi 48 up to maybe 80 CUs and release an intermediate card if needed). However, given AMD’s commentary about focusing on mainstream, it seems unlikely they’ll release anything above the 9070 XT in the 9000 series. So value seekers have great options from AMD now, and top-end seekers will have to be patient.
• Intel: Intel’s roadmap famously has the alchemist, battlemage, celestial, druid codenames (A, B, C, D). We’re in Battlemage (B) era now. Intel has confirmed Celestial (Arc C-series) is being worked on, and after that Druid, indicating a long-term commitment tomshardware.com tomshardware.com. Celestial is expected to target a new process node (possibly Intel’s own 4nm or TSMC 3nm) and could arrive in 2026. It’s rumored to be a more dramatic architectural jump (maybe moving to chiplet design or adding more specialized hardware). But details are scant – what’s known is simply that Intel plans to increase performance per generation and attempt to reach parity with the competition in a few generations. There were earlier hints that Celestial might go for the true high-end, but those plans could shift depending on how Battlemage does. For 2025, the focus is Battlemage: we’ll see the Arc B770 launch (the so-called A980 equivalent) in Q4 2025 if all goes well overclock3d.net overclock3d.net, possibly followed by laptop versions. Intel might also do a refresh of B580 with improved drivers or higher clocks if needed. After that, Celestial (Arc C) could come in late 2026, which might finally be when Intel can try to take on an RTX 5080 or 6080 head-to-head. An interesting note: Intel has shown concept demos of multi-GPU setups (like two Arc GPUs working together). They even had a prototype Maxsun dual-GPU Battlemage card shown in one news piece tomshardware.com tomshardware.com. It’s not clear if that’s a product or just a tech demo, but if Intel can use its expertise in scalable processors to enable multi-GPU rendering (something NVIDIA/AMD have mostly moved away from for gaming), it could be a differentiator – though that’s speculative. In summary, for Intel the next year is about establishing credibility with Battlemage. If that succeeds, Celestial will be aimed higher and could make the GPU market truly a three-horse race by 2027. If Battlemage struggles, Intel might reconsider strategy (focusing on low-end or focusing on integrated GPUs). But given current signals (“team Blue won’t give up anytime soon” as one headline put it wccftech.com wccftech.com), they are in this fight.

Conclusion: The GPU landscape in 2025 is arguably the most exciting it’s been in a long time. We have NVIDIA pushing performance into the stratosphere (and pricing to the stratosphere, some would add), AMD making high-end gaming more accessible and doubling down on features they lacked before, and Intel injecting fresh competition especially at the budget end and soon perhaps in the midrange. Our showdown – RTX 5090 vs RX 9070 XT vs Arc A980 – exemplifies this: each represents their company’s strategy. The 5090 is the “no-compromise, no matter the cost” option, a showcase of raw power and advanced tech like DLSS 4, suited for those who demand the absolute best and are willing to pay for it gamersnexus.net. The 9070 XT is the “smart money” option, delivering 90% of high-end gaming performance for 40% of the price, and bringing AMD back to competitiveness in ray tracing and AI while offering a fantastic value techspot.com techspot.com. And Intel’s Arc (with the A980 looming) is the wild card, aiming to offer something different – a balance of good enough performance with extra VRAM and media features at a lower price, plus the promise that with continued driver updates your card might actually get faster over time (Arc has already shown this trend). In an ultimate showdown across all these dimensions, there’s no single winner – the “ultimate GPU” really depends on what matters to you: Is it sheer performance crown? Is it performance-per-dollar? Is it innovation and future potential?

What we can say is that all three GPUs bring something significant to the table. The RTX 5090 is the ultimate performer and has the most robust feature set (especially for creators or VR enthusiasts) hothardware.com hothardware.com. The RX 9070 XT offers the best gaming value and doesn’t skimp on modern features, making high-end gaming more attainable techspot.com techspot.com. And Intel’s Arc A980 (if it meets expectations) could further democratize the mid/high-end by giving gamers a third option that pushes prices down and offers huge VRAM and media capabilities for the money techspot.com techspot.com. After years of GPU shortages and one-sided battles, 2025’s “Ultimate GPU Showdown” feels like the beginning of a new era: one where we have real competition at multiple price tiers, and where tomorrow’s GPU (be it a 60-series, RDNA5, or Arc Celestial) will be even more exciting. In the end, the biggest winner in this showdown is the consumer – with more choices, better prices than the last generation, and a fierce innovation race, PC graphics are looking brighter than ever.
