Patriot Missile Defense: Inside the $1 Billion Shield Against Modern Threats

• Advanced Air & Missile Defense: The MIM-104 Patriot is a mobile surface-to-air missile (SAM) system capable of intercepting aircraft, cruise missiles, and tactical ballistic missiles, serving as the U.S. Army’s primary air/missile defense since the 1980s reuters.com missilethreat.csis.org.
• Global Deployment: 18+ countries operate Patriot batteries, including the U.S., Germany, Japan, Israel (former), and multiple NATO and Middle East allies missilethreat.csis.org reuters.com. Recent adopters like Poland, Romania, Sweden, and Ukraine have acquired Patriots amid growing regional threats.
• Sky-High Costs: A single Patriot battery (radar, control station, launchers, etc.) costs over $1 billion, plus ~$4 million per interceptor missile reuters.com. Export packages can run $2–$4 billion per battery when including support, upgrades, and hundreds of missiles en.wikipedia.org defensenews.com.
• Hit-to-Kill Technology: Newer PAC-3 missiles use hit-to-kill guidance (no warhead) for direct impact kills, offering far greater accuracy than older blast-fragmentation PAC-2 missiles reuters.com missilethreat.csis.org. A PAC-3 interceptor can defend ~7× the area of a PAC-2, with up to 35 km range vs ballistic missiles (70 km vs aircraft) platform.opennuclear.org.
• Recent Performance: Patriots have intercepted over 150 ballistic missiles in combat since 2015, according to Raytheon reuters.com. In May 2023, a Ukrainian-operated Patriot downed a Russian Kinzhal “hypersonic” missile, proving its effectiveness against advanced threats reuters.com. Defense analysts now call Patriot’s performance in Ukraine “spectacular”, shedding its 1991 Gulf War controversies businessinsider.com businessinsider.com.

Technology Overview

System Architecture: A Patriot battery consists of six main components – 1) interceptors (missiles), 2) launcher units, 3) a phased-array radar, 4) an engagement control station (ECS), 5) an electric power plant, and 6) an antenna mast for communications missilethreat.csis.org. All components are truck- or trailer-mounted for mobility, and a battery-sized unit can be emplaced in under an hour en.wikipedia.org. The battery’s fire control section (radar, ECS, antenna mast, power unit) coordinates detection and tracking, while multiple launcher vehicles (typically 4–8 per battery) carry the missiles en.wikipedia.org defensenews.com. Patriot units can disperse launchers up to 10 km from the radar via remote launch links, expanding the defended area fivefold (from ~20 up to 100 km²) missilethreat.csis.org.

Radars and Command: The AN/MPQ-53/65 radar is the “eye” of the Patriot, a passive electronically scanned array that combines surveillance, tracking, and engagement in one unit missilethreat.csis.org. It scans a specified sector (typically 90–120°) for targets, with a instrumented range of over 150 km according to NATO reuters.com. Upgraded AN/MPQ-65A radars (fielded on newer units) offer ~30% greater range than older models missilethreat.csis.org. The radar feeds data to the ECS (AN/MSQ-104 or newer -132), where operators can track threats and launch interceptors. Because current Patriot radars cover only a sector, multiple batteries are used for 360° coverage. However, a new radar under development – Raytheon’s LTAMDS (Lower Tier Air and Missile Defense Sensor) – will provide 360° coverage and longer range using an active electronically scanned array (AESA) with GaN semiconductors missilethreat.csis.org. The U.S. Army selected LTAMDS to replace Patriot radars and plans to field it (with 360° capability) in the mid-2020s missilethreat.csis.org en.wikipedia.org. Patriot batteries can also network via Integrated Air and Missile Defense Battle Command System (IBCS), a new command architecture that links Patriot with other radars and weapons. IBCS reached initial operational capability in 2023, enabling an “any sensor, best shooter” approach across wide areas en.wikipedia.org en.wikipedia.org.

Interceptor Missiles: The Patriot system fires two families of interceptors – PAC-2 and PAC-3 – each optimized for different threats. PAC-2 missiles (MIM-104C/D/E, also called GEM/T) are larger (almost 1 ton, ~5.3 m length) and use a fragmentation warhead detonated near the target. In the terminal phase, a PAC-2 is guided by a semi-active Track-Via-Missile (TVM) system: the ground radar illuminates the target and the missile’s seeker guides onto the reflected signal missilethreat.csis.org missilethreat.csis.org. PAC-2 variants were enhanced over time – e.g. GEM-T for ballistic missiles and GEM-C for cruise missiles – with better fuzes, propulsion, and guidance. These missiles can reach speeds around Mach 4–5 (over 5,000 km/h) and engage aircraft at ranges out to ~160 km in ideal conditions platform.opennuclear.org. However, against faster ballistic warheads their effective intercept range is much shorter (on the order of a few tens of kilometers) platform.opennuclear.org platform.opennuclear.org. A PAC-2’s maximum interception altitude is around 20 km platform.opennuclear.org.

PAC-3 missiles represent a major leap: they are smaller, hit-to-kill interceptors designed from the outset to destroy ballistic missiles in their final phase. A PAC-3 uses its own active Ka-band radar seeker to home in on the target and steers by combining aerodynamic fins with 180 tiny side thruster motors for agility missilethreat.csis.org platform.opennuclear.org. Lacking a warhead, it obliterates the target by kinetic impact. PAC-3 missiles (particularly the newest MSE variant) can reach around Mach 5+ and cover a much larger defended area – one PAC-3 can protect up to 7× the area of an older PAC-2, thanks to its accuracy and improved kinematics missilethreat.csis.org. The baseline PAC-3 (now called CRI – Cost Reduction Initiative) can intercept ballistic missiles at ~35 km range and 20 km altitude (sufficient for short-range ballistic threats) platform.opennuclear.org. Against lower-speed targets (aircraft or drones), a PAC-3’s reach extends to ~70 km and up to 24 km altitude platform.opennuclear.org. The upgraded PAC-3 MSE (Missile Segment Enhancement) adds a larger dual-pulse motor and other improvements, roughly doubling the range over the CRI version missilethreat.csis.org. In Army tests, PAC-3 MSE demonstrated extended intercepts in 2016–2017 and entered full production by 2018 missilethreat.csis.org. Notably, four PAC-3 missiles fit in one launcher tube (canister) that previously held a single PAC-2, multiplying the loadout. For example, a Patriot launcher with 4 canisters can carry 16 PAC-3s (vs 4 PAC-2s) missilethreat.csis.org. This high “shot density” is crucial when defending against missile salvos or swarms of drones.

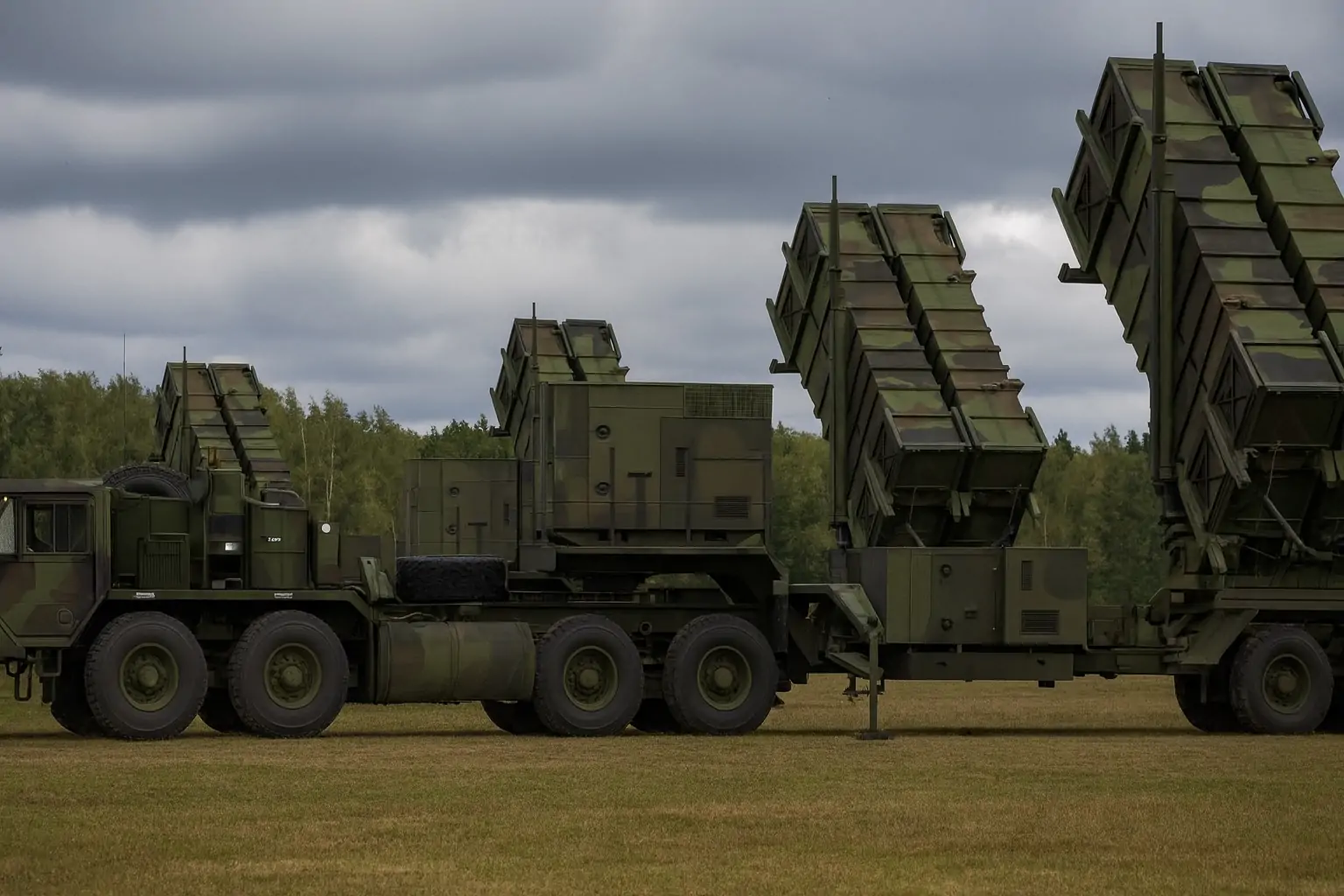

Deployment and Operations: Patriot is designed for rapid deployment and integration with other defense assets. The entire system is mobile on HEMTT trucks and M860 trailers, allowing batteries to be repositioned as needed en.wikipedia.org. A standard Patriot firing battery might deploy with ~8 launchers, each positioned some distance apart (to increase survivability and coverage) and all linked to the central fire control via radio (the Antenna Mast Group provides the data-link antennas) missilethreat.csis.org. The Patriot Engagement Control Station houses three operators who monitor the radar and incoming targets on screens and authorize engagements. In combat, Patriot crews can engage multiple threats simultaneously – the radar can track over 100 targets and guide several interceptors at once. That said, coverage is sector-limited: crew must align the radar (and launchers) toward the expected threat axis. This proved a limitation in some past incidents (e.g. in 2003, a Patriot battery oriented for Iraq’s Scuds failed to recognize a friendly aircraft from a different direction businessinsider.com). Planned 360° upgrades (LTAMDS) aim to eliminate such blind spots missilethreat.csis.org. Patriots can operate in stand-alone mode or be integrated into a national air defense network. Modern Patriot batteries share target data via Link 16 and other interfaces, improving situational awareness across allied forces en.wikipedia.org. In U.S. service, multiple Patriot batteries are controlled by a battalion-level Information Coordination Central (ICC), which can coordinate engagements and hand off targets among batteries en.wikipedia.org en.wikipedia.org. This coordination is increasingly important as Patriots are layered with other systems (like THAAD or fighter jets) for comprehensive defense.

Cost and Price Analysis

Unit Costs – Sticker Shock: Patriot is a highly complex system with an equally high price tag. A new Patriot battery (one fire unit with all components) costs over $1 billion in the U.S., of which roughly $400 million covers the radar, launchers, command station and support equipment, and ~$690 million is for a typical load of missiles reuters.com. Each PAC-3 MSE interceptor costs the U.S. Army about $4 million apiece reuters.com. Export customers pay even more: FY2018 estimates put Patriot export costs around $2.5 billion per battery, and $6–10 million per missile, depending on configuration en.wikipedia.org. These figures make Patriot one of the most expensive air defense systems in the world, reflecting the cutting-edge tech and the extensive support package included in foreign military sales.

Breaking down costs by component, open sources suggest a single Patriot radar can cost several hundred million dollars, and each launcher truck (with four-canister pod) costs a few million. For example, a 2023 arms sale notification for Poland included 48 Patriot M903 launchers and 12 radars for up to $15 billion (along with hundreds of missiles and spares) en.wikipedia.org. Using those figures, one modern AESA radar (LTAMDS) plus four launchers easily exceeds $500M. Missiles are a major cost driver: an order of 208 PAC-3 MSE missiles alone was quoted around $1.0–1.5 billion in recent contracts defensenews.com defensenews.com. Each Patriot battery also requires fire-control centers, power units, and extensive communications gear – all adding to the upfront cost.

Lifecycle and Hidden Costs: The acquisition price is only part of the story. Operating Patriot over decades entails substantial lifecycle costs: maintenance of radars and launchers, periodic recertification or replacement of missiles, software and hardware upgrades, training for crews, and logistics. These sustainment costs often match or exceed the initial purchase price over the system’s life. For instance, Poland’s first Patriot purchase (2 batteries for $4.75B) included a one-time investment in the IBCS battle management system and future upgrade options en.wikipedia.org. Polish officials noted that some upfront costs cover program-wide needs, but additional phases and upgrades would drive the total outlay much higher over time defensenews.com. In one interview, a Polish defense official warned the “price is indeed unacceptable” when the initial U.S. quote came in at $10.5B for 4 Patriot batteries – far above Poland’s budget defensenews.com. Part of that sticker shock was due to technology transfer and offsets that Poland requested. To build domestic industry involvement, Poland sought local production of some components and a new low-cost interceptor (the SkyCeptor missile) in a future phase defensenews.com. These demands raised the price per missile – a single PAC-3 MSE for the U.S. might be ~$5.7M, but with Polish industrial offsets the unit cost could reach $8 million each defensenews.com. This illustrates how offset agreements and co-production, while beneficial for local industry, often become “hidden” costs in arms deals.

Another indirect cost is the need to upgrade Patriots to keep pace with threats. Since the 1980s, Patriot has undergone continuous modifications (from PAC-1 to PAC-2, then PAC-3, and now Post-PAC-3 improvements). Customers must invest in these upgrades to maintain interoperability and effectiveness. For example, the U.S. Army is funding development of the 360° LTAMDS radar and new command systems – allies like Poland and Germany plan to retrofit or acquire these once available defensenews.com defensenews.com. Those upgrades can be very expensive (new radars, new software, testing) and are often negotiated as separate contracts. Additionally, training and sustainment packages can run hundreds of millions. Patriot crews require extensive training (often in the U.S.), and batteries need a steady supply of spare parts and technical support. Some buyers sign multiyear support contracts with Raytheon/Lockheed for maintenance and inventory management, adding to long-term costs.

Cost for Different Countries: Patriot deals vary widely by country, depending on quantities and included extras:

• United States: As the originator, the U.S. benefits from economies of scale and sunk R&D. A U.S. Army Patriot battalion (which includes multiple batteries) is expensive but partly funded by decades of development. A recent U.S. Army budget cited ~$1.09B per battery in FY2022 dollars en.wikipedia.org. The Army is also investing in modernizing all existing units (new interceptors, new network). By 2025, the U.S. has over 480 launchers active (out of ~1,100 produced) en.wikipedia.org, representing tens of billions invested over the program’s life.
• Poland: Poland’s Wisła program to acquire Patriot is a case study in cost escalation. Initially budgeting 30 bn złoty ($7–8B) for two phases, Poland was quoted $10.5B for Phase 1 (2 batteries) with PAC-3 MSE in 2017 defensenews.com. After negotiations, Poland signed a $4.75B deal in 2018 for 2 batteries (4 fire units) with PAC-3 MSE, which included 208 missiles, 16 launchers, 4 radars, 4 ECS, 6 command centers, and the IBCS network en.wikipedia.org. The first battery arrived in 2022 en.wikipedia.org. In 2023, Poland approved spending up to $15B for Phase 2: acquiring an additional 6 batteries with 12 new AESA radars, 48 launchers, and 644 PAC-3 MSE missiles (and possibly SkyCeptor interceptors) en.wikipedia.org. All told, Poland’s Patriot program could exceed $15–20B to field 8 batteries, including long-term support – a reflection of Poland’s urgent priority to counter missile threats from Russia (via Kaliningrad) and to integrate with NATO’s defense architecture.
• Gulf States: The oil-rich Gulf countries bought Patriot to defend against Iranian missiles and Yemeni Houthi attacks. Saudi Arabia and Kuwait were among the first foreign operators in the 1990s. United Arab Emirates (UAE) invested heavily in the latest PAC-3: a 2014 UAE contract was worth ~$4B for new PAC-3 batteries and 288 PAC-3 missiles plus 216 GEM-T missiles en.wikipedia.org. In 2019, the UAE ordered another 452 PAC-3 MSE missiles for $2.73B en.wikipedia.org – about $6 million per missile in that deal. Qatar purchased 11 Patriot fire units with 246 GEM-T and 786 PAC-3 missiles (a massive load) in a 2012 agreement, declared operational in 2018 en.wikipedia.org. That package likely cost over $7B. Kuwait bought 20 launchers and 60 PAC-3s in 2012 en.wikipedia.org; Saudi Arabia as part of its “Peace Shield” defense network has multiple Patriot battalions (exact costs classified, but Saudi arms deals in the 2010s for upgrades were in the billions). Many Gulf deals include U.S. contractor support on-site, given the limited local workforce for high-tech systems.
• East Asia: Japan was an early adopter, deploying Patriot PAC-2 in the 2000s and later upgrading to PAC-3 after North Korea began testing ballistic missiles. Japan domestically produced some Patriot components under license; a 2005 PAC-3 contract was reportedly around $1.7B for 124 missiles and upgrades to 16 fire units. South Korea acquired PAC-2 batteries from Germany in the 2000s, then upgraded with new PAC-3 missiles (Seoul spent ~$1.4B in 2014 for PAC-3 CRI interceptors). Taiwan purchased its first 3 Patriot batteries (PAC-2 GEM) in the 1990s and then a major package of 6 new PAC-3 batteries and upgrades starting in 2007. Taiwan’s full Patriot program cost is around $5.6B (as of mid-2020s) for 6 PAC-3 batteries + modernizing 3 older ones platform.opennuclear.org platform.opennuclear.org. This includes dozens of launchers and an inventory of PAC-3 CRI and MSE missiles. Given China’s growing missile arsenal, Taiwan has prioritized these capabilities despite the high cost.
• Europe: Several European NATO members have Patriots largely through alliance programs. Germany fielded 12 Patriot units (Cluster upgrades in the 2000s) and is updating them; in 2023 Germany joined a consortium with Netherlands, Spain, and others to buy Patriot GEM-T missiles and possibly new radars en.wikipedia.org. The Netherlands and Spain each operate a handful of batteries (Spain bought second-hand units from Germany). Greece obtained Patriot batteries (PAC-3 capable) as part of a NATO agreement in the early 2000s to bolster southeastern flank defense. Romania signed a $4B deal in 2017 for 7 Patriot batteries (the first delivered in 2020) including 168 PAC-3 MSE and 56 GEM-T missiles en.wikipedia.org – comparatively a better unit-price by opting for a standard U.S. Foreign Military Sale without unique customizations defensenews.com. Sweden chose Patriot in 2018 over a French system, ordering 4 units (2 battalions) with 12 launchers for an estimated $3.2B en.wikipedia.org. Like Poland, Sweden saw costs rise above initial estimates (10 billion SEK grew to over 30 billion SEK) en.wikipedia.org, illustrating that budget overruns are common for such complex weapons.

In summary, Patriot’s cost structure includes steep upfront costs (hardware and missiles), plus long-term expenses for keeping the system modern and ready. Countries often stagger purchases over many years and sometimes rely on U.S./NATO financial support or offsets to afford these systems. Despite the cost, demand remains high due to the increasing threat of missiles and the Patriot’s proven capabilities.

Procurement and Global Usage

Current Operators: Patriot is one of the most widely deployed air defense systems among U.S. allies. As of 2025, at least 18 countries operate Patriot batteries missilethreat.csis.org. The system’s global footprint spans North America, Europe, the Middle East, and Asia. Major operators include:

• United States – by far the largest user, with 15 Patriot battalions (over 480 launchers active) defending the U.S., Europe (Germany), the Mideast, and Pacific bases en.wikipedia.org en.wikipedia.org.
• NATO Allies (Europe): Germany (12+ batteries) has Patriot as its main long-range SAM, and leads a Patriot user consortium in Europe to jointly procure upgrades en.wikipedia.org. The Netherlands, Spain, and Greece each operate Patriot units integrated into NATO air defense – for example, Dutch and German Patriots were forward-deployed to Turkey during regional crises. Poland, Romania, and Sweden are new Patriot customers, purchasing systems after 2017 to counter the Russian missile threat. Poland will field 8 batteries by late 2020s, and Romania 7 batteries by 2024 en.wikipedia.org. Switzerland is a future operator, with 5 batteries on order (delivery by 2026) as part of its Air2030 defense program.
• Middle East: Israel was an early Patriot user (MIM-104D) against Iraqi Scuds in 1991 and later retired them in favor of indigenous systems (Arrow and David’s Sling), though it retains Patriot as a back-up (Israel is listed as a former operator) en.wikipedia.org en.wikipedia.org. The Gulf states are heavy users: Saudi Arabia, Kuwait, United Arab Emirates, and Qatar all deploy Patriot batteries guarding cities and oil infrastructure from Iranian or Yemeni missiles. For instance, Saudi Arabia has used Patriot to intercept scores of missiles and drones aimed at Riyadh and other sites during the Yemen conflict en.wikipedia.org. Kuwait and Qatar acquired Patriots in the 1990s and 2010s, motivated by threats from Iran and Iraq. Jordan obtained Patriots (hand-me-down PAC-2 batteries from Germany) to bolster its air defense, deploying three to four batteries by 2015 en.wikipedia.org en.wikipedia.org. Egypt bought its first Patriot PAC-3 battery in 1999 (first in Africa) as part of a U.S. aid package en.wikipedia.org en.wikipedia.org, reflecting concerns about regional missile proliferation (e.g., Scuds in the hands of adversaries).
• Asia-Pacific: Japan operates Patriot batteries at key locations as part of a multi-layered defense against North Korean ballistic missiles (with Aegis destroyers providing upper-tier intercepts). Japan’s Air Self-Defense Force has PAC-3 across 6 AD missile groups, and notably deployed Patriots around Tokyo to guard the 2020 Olympics from missile/drone threats en.wikipedia.org en.wikipedia.org. South Korea fields Patriot in its Air Force’s Air Defense Missile Command (upgraded PAC-2 and some PAC-3) to protect against North Korea’s missile arsenal en.wikipedia.org. Taiwan has Patriot PAC-3 across its territory as a cornerstone of its defense against Chinese missiles platform.opennuclear.org platform.opennuclear.org. Taiwan’s six PAC-3 batteries (plus older PAC-2 GEM upgraded) are strategically placed to shield its capital and critical sites from China’s short-range ballistic missiles, with deliveries of PAC-3 MSE ongoing through 2025 platform.opennuclear.org.

In total, Raytheon has produced over 240 Patriot fire units and over 10,000 missiles since the 1980s reuters.com en.wikipedia.org. Patriot’s presence in 19 countries (counting recent deliveries to Ukraine) underscores its role as a de facto standard for high-end air defense among U.S. allies reuters.com. Many of these operators engage in cooperation: for example, Germany, Poland, and others frequently drill together, and a Patriot User Group shares technical updates. Several NATO countries (Germany, Netherlands, U.S., Spain) even loan batteries to bolster allied defenses during crises. (Germany and the Netherlands sent Patriots to Turkey in 2013 during the Syrian war, and to Slovakia in 2022 after Russia’s invasion of Ukraine.)

Recent Procurement Deals: The past few years (2021–2025) have seen major Patriot sales and donations:

• Poland & Eastern Europe: Poland’s expanded Patriot order in 2023 (~$15B for 6 more batteries) is one of the largest air-defense deals ever en.wikipedia.org. Romania completed its Patriot deliveries by 2022 as per a ~$4B purchase en.wikipedia.org. The Baltic states have also expressed interest in Patriot; none have bought it yet due to cost, but Germany has offered coverage. In 2022–23, Germany deployed Patriot units to Slovakia and Poland on a temporary basis to protect NATO’s eastern flank (one German battery remains in Slovakia as of 2023). Sweden finalized delivery of all units by end of 2022, integrating them into its air defense regiment en.wikipedia.org en.wikipedia.org. Switzerland signed a contract in 2021 for 5 Patriot units (beating out Europe’s SAMP/T system) and, notably, in 2023 agreed to let the U.S. redirect early-production units earmarked for Switzerland to be delivered instead to Ukraine as military aid (with Switzerland receiving replacement units later due to its neutrality policy) breakingdefense.com en.defence-ua.com.
• Middle East: After a lull, Patriot sales in the Middle East have picked up to replenish interceptor stocks used in regional conflicts. In 2021–2022, Saudi Arabia and the UAE requested new interceptors amid increased missile/drone attacks. The U.S. has also moved Patriots in and out of Iraq and Gulf states as threats evolve. No new first-time buyers in the Middle East recently (countries like Iraq or Oman have shown interest but not purchased Patriot, often opting for other systems or relying on allies).
• Asia: South Korea announced plans to upgrade its Patriots to PAC-3 MSE and potentially acquire additional units, especially after seeing the system’s effectiveness. Japan is co-developing a new interceptor (SM-3 Block IIA for naval use) but also continually upgrades Patriot – in 2022 it tested integration of PAC-3 MSE. There’s discussion of expanding Patriot coverage for events like the World Expo 2025 in Osaka. India has not acquired Patriot (choosing the Russian S-400), illustrating that cost and geopolitics influence choices – Patriot is often compared with systems like the S-400 Triumf (which some see as cheaper per unit, though with different capabilities). However, nations under the U.S. security umbrella tend to prefer Patriot for interoperability and reliability reasons.

Strategic Drivers for Acquisition: Countries buy Patriot for both military and political reasons. Militarily, Patriot offers a combat-proven shield against the most pressing airborne threats: whether it’s SCUD-type missiles, advanced fighter jets, or now the threat of drones and “hypersonic” missiles, Patriot provides a credible defense with a track record. For example, South Korea and Japan invested in Patriot as North Korea’s missile tests surged; Saudi Arabia and Israel wanted protection from Saddam’s Scuds and later Iranian proxies’ rockets. Poland, Sweden, Romania chose Patriot post-Crimea annexation when Russia’s Iskander ballistic missiles in Kaliningrad became a direct threat. These nations also valued integration with NATO – Patriot batteries can plug into NATO’s missile defense network, whereas Russian or non-NATO systems cannot.

Politically, buying Patriot often strengthens ties with the United States. It is frequently part of broader defense cooperation agreements. For instance, Poland’s Patriot deal came alongside hosting U.S. troops and investing in American fighters; Gulf states see U.S. air defense as a commitment to their security. There are cases where the absence of a Patriot deal had political fallout: Turkey in the 2010s requested Patriots, but after falling out over technology sharing, it pivoted to purchase the Russian S-400, straining relations with NATO. This shows Patriot is not just a defense tool but a signal of alignment with Western defense frameworks.

Going forward, the Patriot user base may grow modestly – countries like Morocco have been reported as interested in Patriot (as a future operator, pending U.S. approval) en.wikipedia.org. Additionally, Patriot systems are being donated or re-sold: e.g., the U.S. transferring some of its inventory to allies (as happened with Ukraine, and previously with Germany to Turkey). This could accelerate proliferation of the system beyond traditional buyers.

Recent News and Developments (2024–2025)

In the past two years, the Patriot system has been at the center of several high-profile developments, from battlefield performance in Ukraine to technical upgrades and geopolitical debates. Below are the major storylines:

Patriot in Ukraine’s Defense (2023–2025): Perhaps the most significant Patriot news has been its deployment in Ukraine to counter intense Russian missile and drone attacks. After initial reluctance, the U.S. and allies agreed in late 2022 to supply Patriot batteries to Ukraine. The first systems – one from the U.S., one jointly provided by Germany and the Netherlands – arrived by April 2023, with Ukrainian crews having been fast-tracked through training businessinsider.com. Almost immediately, Patriot proved its worth: on May 4, 2023, Ukraine used a Patriot to shoot down a Russian Kinzhal ballistic missile aimed at Kyiv reuters.com. The Kinzhal had been touted by Moscow as “hypersonic” and unstoppable, so its interception was a propaganda coup for Ukraine and the Patriot system. By mid-May 2023, Ukraine claimed multiple Kinzhals defeated in a single night attack reuters.com – a claim U.S. officials cautiously supported, noting one Patriot battery can engage multiple inbound missiles. Russia attempted to destroy the Patriots by saturating attacks: during a May 16, 2023 strike on Kyiv, Russia launched a barrage including ballistic and cruise missiles. A U.S. official said a Patriot system was likely damaged but not destroyed in that attack aljazeera.com. Within hours, Ukrainian Patriot batteries were back online, demonstrating resilience. Ukrainian President Zelenskyy and defense officials have lauded Patriots as game-changers, but plead for more units to cover their vast airspace reuters.com.

As of 2025, Ukraine reportedly has seven Patriot batteries in operation en.wikipedia.org: three donated by the U.S., three by Germany (one of which was originally slated for Germany’s own use), and one by the Netherlands/Romania combined (the Netherlands provided additional launchers and missiles, and Romania transferred an incoming battery from its inventory) en.wikipedia.org. This patchwork defense is now shielding Kyiv and other key areas. Importantly, Germany and Norway announced in 2024 plans to donate additional batteries (two from Germany, one from Norway) to Ukraine in 2025 en.wikipedia.org. The Norwegian contribution is notable since Norway itself did not own Patriot; it likely purchased a system from U.S. stock specifically to help Ukraine, under a coalition effort. The European Union also set up financing to help members backfill donated Patriots and fund interceptors for Ukraine. By mid-2025, discussions even arose about a “Patriot coalition” to jointly purchase systems for Ukraine – e.g., Germany indicated willingness to pay for new U.S.-made units for Kyiv reuters.com. Moscow has denounced these moves, claiming it “sees Patriots as an escalation” and even (without evidence) that it had destroyed some Patriot launchers reuters.com. On the ground, however, Patriots are now an integral part of Ukraine’s air defense, credited with defending Kyiv from ballistic strikes that previously could not be reliably intercepted.

Battlefield data from Ukraine suggests Patriot’s performance has exceeded expectations, reshaping its legacy. In the 1991 Gulf War, Patriot had a mixed record (initial Army claims of high Scud kill rates were later revised downward, sparking controversy) businessinsider.com businessinsider.com. Those early models faced technical limitations. But in Ukraine, the latest Patriot configurations have achieved a high interception rate against some of the world’s most advanced conventional missiles. “The Patriot has performed fairly spectacularly in Ukraine,” says Justin Bronk, a RUSI air warfare expert, noting that skepticism from its Gulf War record is now firmly put to rest businessinsider.com businessinsider.com. Similarly, Frederik Mertens of The Hague Center for Strategic Studies calls Patriot’s showing “an unmitigated success” in Ukraine businessinsider.com. These endorsements from independent analysts underscore a narrative shift: Patriot is proving itself under real-world, high-intensity conditions against a variety of threats (ballistic missiles, cruise missiles, drones). That said, Ukraine also highlights the cost issue – using a $4 million missile to shoot down Iranian-made Shahed drones (costing maybe $20,000 each) is not economical reuters.com. Western officials are now seeking to supplement Patriots with cheaper counter-drone systems so that Patriots can be reserved for high-value targets. Nonetheless, the strategic impact is clear: Patriots helped blunt Russia’s missile blitz, protecting civilians and critical infrastructure, and thus have been a cornerstone of keeping Ukraine’s cities functioning under fire.

Upgrades and Modernization: On the technical front, 2024–2025 saw progress in Patriot modernization programs:

• New Radar (LTAMDS): Raytheon’s LTAMDS radar, branded “GhostEye,” is under testing to eventually replace the Patriot radar. In 2022, Raytheon delivered the first LTAMDS prototype to the Army, and in 2023 it underwent initial targeting tests. Notably, in a September 2022 test, a Patriot system engaged a target using tracking data from an LTAMDS sensor, proving backward compatibility. Full-rate production of LTAMDS was expected to begin by 2023–24 missilethreat.csis.org en.wikipedia.org. This radar’s 360° coverage and longer range will allow a single Patriot battery to cover more approaches (today crews sometimes deploy two batteries back-to-back for near-360 coverage). Once fielded (around 2025–2026), LTAMDS will mark the biggest sensor upgrade for Patriot in four decades.
• Integrated Networks (IBCS): Northrop Grumman’s Integrated Battle Command System (IBCS) was approved for initial fielding in mid-2023 news.northropgrumman.com cdn.northropgrumman.com. IBCS allows Patriot batteries to form a web with other Army air defense nodes – e.g. Sentinel radars, NASAMS, and THAAD – sharing radar tracks and engagements. In practical terms, a Patriot launcher might shoot down a threat using targeting data from an external sensor (even one hundreds of kilometers away), overcoming line-of-sight limits of its own radar. The U.S. Army is standing up the first IBCS-equipped air defense units, and Poland’s Patriots will be IBCS-enabled from the start en.wikipedia.org. This network-centric approach is crucial to defeating complex attacks (like mixed salvos of missiles and drones) and is seen as a response to emerging threats like hypersonic glide vehicles. IBCS reached initial operational capability in late 2022 and was slated for use in U.S. Army air defense brigades in Europe by 2023 en.wikipedia.org.
• Missile Improvements: Lockheed Martin, which produces the PAC-3, ramped up production in 2024 to meet surging demand (with orders from the U.S., Poland, Taiwan, etc.). They are reportedly turning out 500+ PAC-3 MSE missiles per year and plan to scale to 650 per year by 2027 seekingalpha.com. There is also ongoing development of a next-gen Patriot interceptor under the name PAC-3 CRS (Cost Reduction Spiral) and consideration of integrating the lower-cost SkyCeptor (the Israeli-designed Stunner missile) in some configurations – Poland is especially interested in that for lower-tier defense, but as of 2025 SkyCeptor is not yet in production. Meanwhile, software updates are improving Patriot’s ability to discriminate targets and engage drones. One example: in 2022, the U.S. Army tested software to allow PAC-2 GEM-T missiles (which have proximity warheads) to better engage UAVs and cruise missiles by optimizing their fuzing.
• Multinational Cooperation: In 2024, Germany spearheaded the European Sky Shield Initiative, a framework for European nations to jointly purchase air defense systems (including Patriots and IRIS-T and Arrow-3). As part of this, Germany and others ordered additional GEM-T missiles to replenish stocks and meet new members’ needs en.wikipedia.org. NATO also created a Patriot support partnership under the NSPA (NATO Support and Procurement Agency) that new operators like Switzerland can join to access training and maintenance more efficiently vbs.admin.ch. These efforts show how Patriot is being woven into collaborative defense plans, spreading costs and ensuring interoperability.

Political and Strategic Debates: Patriot has figured into geopolitical controversies as well:

• Turkey’s Air Defense: Turkey’s 2019 decision to buy the Russian S-400 system instead of Patriot caused a rift with the U.S. (leading to Turkey’s removal from the F-35 program). The backstory was that Turkey had requested Patriots for years, but negotiations faltered over tech transfer. The U.S. refusal to share the Patriot source codes and Turkey’s insistence on co-production led to deadlock defensenews.com defensenews.com. Turkey’s move to S-400 (cheaper at ~$2.5B for 2 batteries) was as much political as practical. This remains a point of tension and is often cited in discussions on how the U.S. approaches allied defense sales – balancing protecting proprietary tech versus meeting allies’ demands. Notably, after witnessing Patriot success in Ukraine, some in Turkey have called the S-400 purchase a mistake and suggested realigning with NATO systems, though no Patriot purchase is on the table as of 2025.
• Usage Rules & Controversies: Countries that deploy Patriot have sometimes faced political limits on their use. For example, Germany initially hesitated to send Patriots to Ukraine for fear of escalation with Russia, relenting only when partnered with the U.S. and after Russia’s missile terror intensified. In another instance, when Saudi Patriots intercepted missiles from Yemen, there was controversy over whether some missed intercepts led to casualties – leading to scrutiny of performance and calls for more transparency about success rates. Raytheon and the Pentagon in 2018 released data claiming high intercept rates in Yemen, but independent verification is hard. This echoes the Gulf War experience: after 1991, a U.S. House subcommittee found scant evidence for the Army’s initial claim of 70%+ success against Scuds, suggesting it might have been far lower businessinsider.com businessinsider.com. Patriot manufacturers have since improved the system, and real-world data from Saudi Arabia and Israel in the 2010s did show many successful intercepts (Israel had confirmed Patriot shootdowns of drones and a Syrian Su-24 aircraft in 2014 en.wikipedia.org). Still, transparency in performance is a topic – Ukraine’s war, with its multiple sensors and Western oversight, might provide the clearest picture yet of how Patriot performs under stress.
• Defense Aid and Financing: The high cost of Patriot led to creative financing mechanisms in 2024. The EU, for instance, for the first time considered using a common fund to reimburse member states donating such expensive assets. The U.S. also pre-funded some Patriot interceptor transfers (e.g., it pulled some missiles from Israeli stockpiles for Ukraine, as reported in early 2023) reuters.com. Additionally, the US has occasionally forward-deployed its own Patriot units to allies in lieu of them buying new ones – a notable case was Slovakia, which borrowed a U.S. Patriot battery in 2022–23 while retiring its old S-300, effectively acting as a stopgap defense.

In sum, the recent news paints Patriot as both a workhorse and a headline-grabber: it’s shooting down missiles in active warzones, rolling out new tech to face the next generation of threats, and is at the heart of alliance defense plans. As threats evolve (drones, hypersonic gliders, cruise missiles hugging terrain), Patriot is being updated to remain effective. Raytheon has even demonstrated that Patriot could in theory shoot down some hypersonic weapons – though not originally designed for that, the PAC-3’s agility and the right sensor cue (like from space or another radar) could give it a chance against certain hypersonic targets in the terminal phase. This “stretching” of Patriot’s mission, however, has its limits; it’s part of why the U.S. is researching new systems (like Glide Phase Interceptors for hypersonic defense). Still, for the foreseeable future (the system is slated to serve into at least 2040 en.wikipedia.org), Patriot will remain a key pillar of air and missile defense worldwide.

Expert Commentary and Sources

Defense experts and officials have weighed in on the Patriot system’s impact, often highlighting its mix of high cost but high effectiveness:

• Frederik Mertens, Analyst at The Hague Center for Strategic Studies, on Patriot’s performance in Ukraine: “an unmitigated success”, dispelling doubts from past conflicts businessinsider.com. He notes that early-model Patriots in the Gulf War had “shaky” results mainly because they were originally designed for aircraft, not ballistic missiles – a gap since closed by the hit-to-kill PAC-3 upgrades businessinsider.com businessinsider.com.
• Justin Bronk, Senior Research Fellow (Airpower) at RUSI, said: “The Patriot has performed fairly spectacularly in Ukraine,” adding that its controversial record from the Gulf War is “not accurate anymore” after recent real-world successes businessinsider.com businessinsider.com.
• Timothy Wright, Missile Defense Expert at IISS, argues that the idea Patriot “doesn’t work” is outdated, given the extensive improvements and the system’s effective use by well-trained crews in recent years businessinsider.com.
• Bartosz Kownacki, former Polish Deputy Defense Minister, on the initial $10B+ Patriot price tag Poland was quoted: “The price is indeed unacceptable… We cannot simply afford to spend that much… on two batteries and PAC-3 missiles” defensenews.com. His candid remarks came during tough negotiations in 2017, highlighting how even wealthy nations struggle with Patriot’s cost. Poland did negotiate a lower price by scaling back and splitting procurement into phases.
• Marek Świerczyński, defense analyst at Polityka Insight (Poland), estimated that one PAC-3 MSE missile for Poland could cost up to $8M with local offsets, versus ~$5.7M for the U.S. Army – illustrating how industrial participation goals can drive up expenses defensenews.com. He warned that Poland’s desire for cutting-edge tech (new radar, new interceptors) meant “colossal” costs, advising that to cut expenses Poland “has to say goodbye” to some of those leaps defensenews.com.
• Raytheon Technologies (manufacturer of Patriot), in its public materials, emphasizes the system’s proven record. The company reports that “since January 2015, Patriot has intercepted more than 150 ballistic missiles in combat operations” reuters.com – a statistic meant to underscore reliability. Raytheon also frequently notes Patriot’s role in protecting U.S. and allied forces in conflicts from the Gulf War to Yemen, and the continual upgrades to the system (they often cite the shift to AESA radar and the integration of Patriot into the broader sensor network).
• U.S. Government and Military Officials: The Pentagon generally avoids giving exact Patriot success rates (often classified), but in May 2023 U.S. Defense Department confirmed that a Patriot in Ukraine “successfully engaged” the Russian Kinzhal missile reuters.com reuters.com. U.S. Army commanders have called Patriot a “cornerstone” of integrated air and missile defense, while also acknowledging the need for more capacity and complementary systems due to the high cost per engagement (Patriots are reserved for high-value targets). Notably, in 2022 when sending Patriot to Ukraine was debated, some U.S. officials expressed concern that a Patriot battery could become a high-profile target for Russia – which did occur – but the successful defense and minimal damage vindicated the decision.
• Defense Industry Analysts: With the surge in demand, analysts note Patriot production is ramping up. According to a Seeking Alpha report, Lockheed Martin boosted PAC-3 missile output by 30% in 2024, delivering 500+ missiles, and has new contracts to further increase production seekingalpha.com. They point out that even this high output has years-long backlog due to orders from multiple nations – a sign of Patriot’s continued strategic value (and a challenge, as countries like the U.S. are trying to replenish stocks after sending interceptors to Ukraine).

In conclusion, the consensus among experts is that Patriot is expensive but indispensable for many modern militaries. It embodies the trade-off in air defense: a top-tier capability with a hefty price. As Ian Williams of CSIS’s Missile Defense Project wrote, “Patriot is the go-to solution for lower-tier missile defense among U.S. allies, offering protection and interoperability that few systems can match” reuters.com reuters.com. However, he also noted that using a million-dollar missile against a cheap drone is “a costly way to do business”, underlining the ongoing need to pair Patriots with other short-range defenses reuters.com.

Sources: This report draws on a range of authoritative sources including the Center for Strategic and International Studies (Missile Threat project) missilethreat.csis.org missilethreat.csis.org, official data compiled in Jane’s and Wikipedia (with citations to Pentagon budgets and DSCA notices) en.wikipedia.org en.wikipedia.org, Defense News interviews with Polish officials defensenews.com defensenews.com, Reuters news dispatches on Ukraine and global Patriot sales reuters.com reuters.com, and commentary from military think-tanks and defense analysts businessinsider.com businessinsider.com. These sources collectively provide a factual and up-to-date picture of the Patriot missile defense system’s architecture, costs, global footprint, and performance in recent events. All factual claims and quotes are linked to the original sources for verification.
